Lengthening TY175 swingarm


  • Please log in to reply
19 replies to this topic

#1 feetupfun

feetupfun

    Advanced Member

  • Members
  • PipPipPip
  • 1,904 posts
  • Location:Gladstone Australia
  • Bike:1963 to 1981

Posted 29 January 2011 - 08:29 AM

One of my TY175s has been a test horse for modifications since I got it in 1976. The latest change I have made is to lengthen the swingarm by 45mm. The frame on this bike has already been changed in a way that has produced a steeper steering head angle but retained the standard wheelbase. It also has TY250B forks and a 205cc motor. The wheelbase before the swingarm extension was 48.5 inches, which is quite short for a trials bike. I felt it might be nicer to ride with a longer wheelbase and with the weight bias further forwards, so I decided to lengthen the swingarm to achieve this. I had heard that others had extended TY175 swingarms by between 25mm and 50mm.

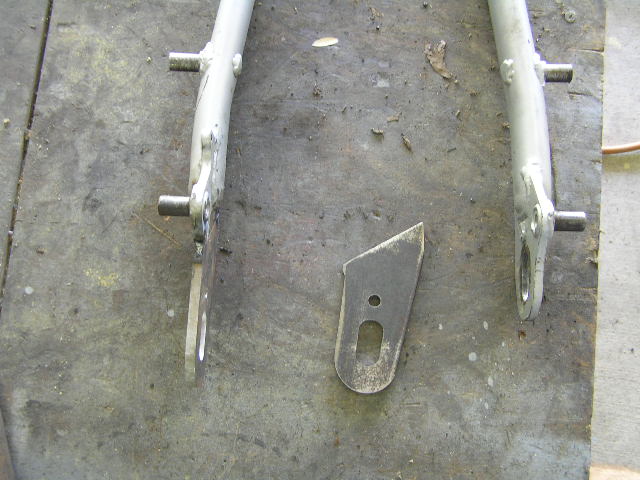

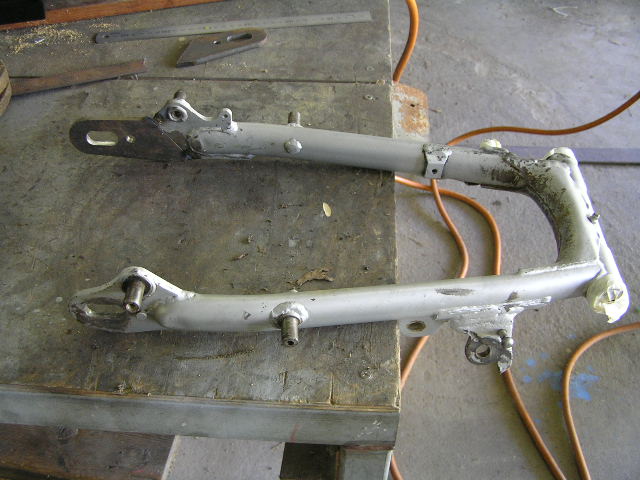

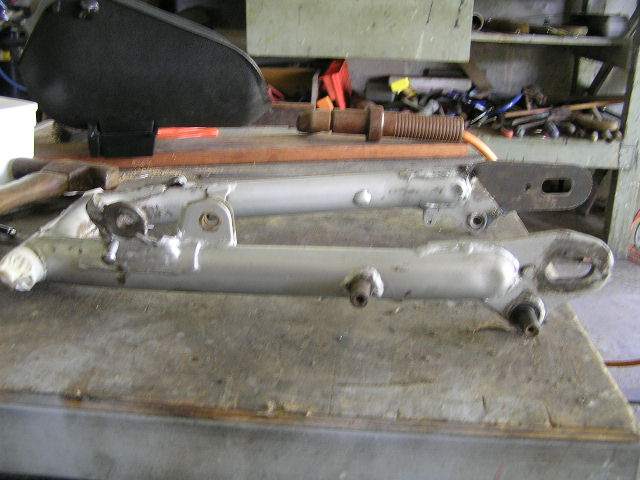

There are many ways to lengthen a TY175 swingarm but I decided to make new, longer axle mounting plates from 6mm x 50mm mild steel strip and weld them to the stubs of the existing axle plates. This avoided having to make new shockie mounts. Its probably not obvious in the photos, but the centre line of the new axle slot is lined up with the centre line of the swingarm side arms, which is also the case with the original axle slots. The length of the new axle slots and the location of the cam stops relative to the slot ends is also the same as for the standard setup. I made a cardboard template of the new axle plates, sized to have the axle slot 45mm further back than standard, and marked the cut line on the existing plates. I made the new axle plates from the template, carefully making them exactly the same shape and size and slot position. I ground a vee on one side of the new axle plates, cut the first axle plate off and made a matching vee on it. I then tacked the first new plate in position. I then ground a vee weld prep on the other side of that joint and welded it. I then welded the other side of the plate.

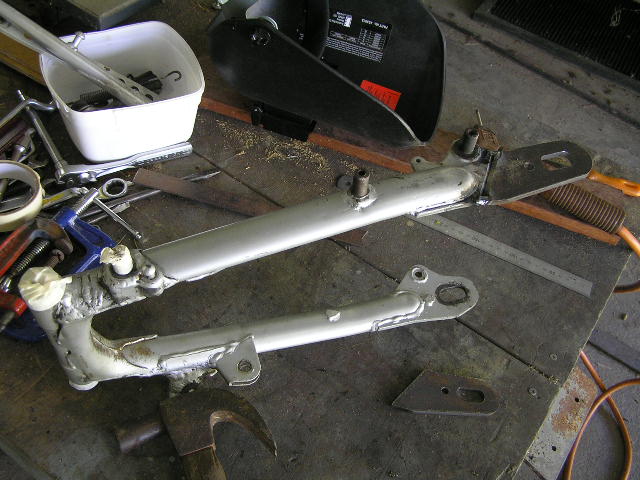

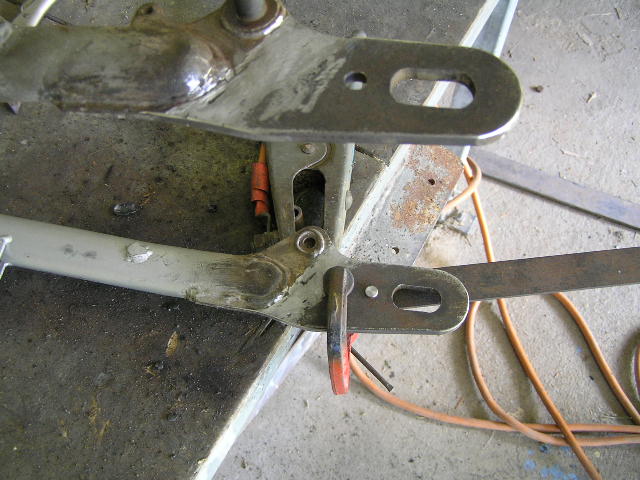

I used a flat surface and a dummy axle to make sure that the second plate was going to be positioned exactly right and welded it on.

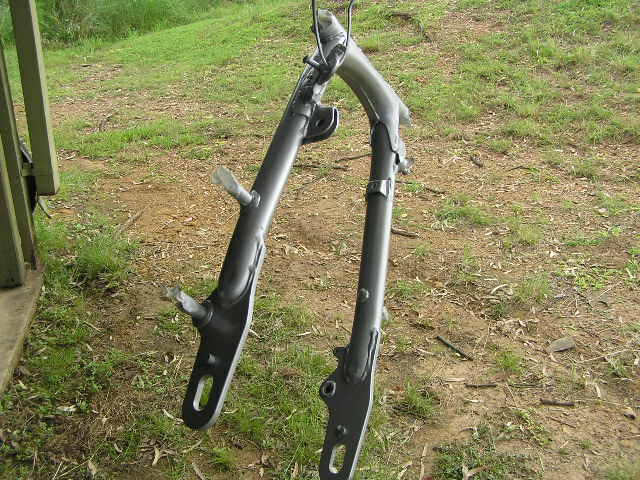

I then welded on the cam stops, made from the shank of an 8mm steel bolt.
The brake plate link is now too short so I am planning to make a longer one. The brake rod may be long enough as is, as I have rotated the brake arm on the spline. The chain needed a few extra links. The rear frame loop needed to be bent up a bit to provide tyre clearance at the rear end of the guard.
I've ridden it since the mod and there is more weight on the front end as expected and the stability when turning uphill is much better. I can tell that the front wheel needs a wider arc in tight turns but it is still taking a smaller arc that my non-TY175 1970s twinshock trials bikes. The longer swingarm has also increased the travel of the rear wheel slightly, which has softened the rear suspension action nicely.

Attached Images

  • P1230200.JPG
  • P1230201.JPG
  • P1230202.JPG
  • P1230203.JPG
  • P1230214.JPG
  • P1230216.JPG

Edited by feetupfun, 29 January 2011 - 08:56 AM.

There is nothing good or bad, but thinking makes it so

William Shakespeare


Ads By Google User is online

Ads By Google
  • Ad Bots


Don't want these Ads? Why not help support TC and sign up as a Trials Central Supporter?

#2 gazzaecowarrior

gazzaecowarrior

    Advanced Member

  • Members
  • PipPipPip
  • 401 posts
  • Location:United Kingdom
  • Bike:Beta Evo 250

Posted 29 January 2011 - 05:59 PM

Nice job mate. Really like your work. Let me know how it rides.

#3 rock hopper

rock hopper

    Member

  • Members
  • PipPip
  • 92 posts
  • Location:Livermore,Ca
  • Bike:Montesa 4rt

Posted 29 January 2011 - 06:02 PM

I was wondering about mod you did to frame steering, how much did you change it and did you copy it from another frame or do yourself

#4 tlrmark

tlrmark

    Advanced Member

  • Members
  • PipPipPip
  • 158 posts
  • Location:British Columbia Canada
  • Bike:Honda 200 202cc
  • Club:Victoria Motorcycle Club

Posted 30 January 2011 - 12:13 AM

v ery much enjoyed your post of the swingarm modification, excellent design and execution. a picture of the complete bike with the modifications would be great. cheers mark

#5 tony27

tony27

    Advanced Member

  • Site Supporter
  • 978 posts
  • Location:Palmerston North New Zealand
  • Bike:jarvis rep,ty250c
  • Club:manawatu-orion

Posted 30 January 2011 - 01:52 AM

Thanks for posting that up David, I was sure there would be a lot of interest in what you had done :thumbup:

#6 feetupfun

feetupfun

    Advanced Member

  • Members
  • PipPipPip
  • 1,904 posts
  • Location:Gladstone Australia
  • Bike:1963 to 1981

Posted 30 January 2011 - 08:37 AM

I was wondering about mod you did to frame steering, how much did you change it and did you copy it from another frame or do yourself

The steering frame mod detail:
I wanted a steeper steering angle and for the bars to be further forwards but to avoid shortening the wheelbase. I added 25mm length to the top frame tube. To accomodate this, I bent the front downtubes at a point just above the front motor mounts (approximately the same distance from the ground as the front axle). This steepened the steering angle and moved the steering head forwards by approximately 25mm and slightly upwards, but did not move the front axle forwards or aft. Because of the change to the top frame tube, I had to make new front fuel tank mountings and relocate the HT coil.
With 340mm shockies in the standard position and TY250 forks fitted with the tops of the tubes flush with the top triple clamp, the steering angle was indentical to a standard TY250 fitted with 340mm shockies.
Of course since then the steering has become slightly steeper because I have extended the swingarm which has caused the back end of the bike to be slightly higher.
There is nothing good or bad, but thinking makes it so

William Shakespeare

#7 feetupfun

feetupfun

    Advanced Member

  • Members
  • PipPipPip
  • 1,904 posts
  • Location:Gladstone Australia
  • Bike:1963 to 1981

Posted 30 January 2011 - 08:38 AM

v ery much enjoyed your post of the swingarm modification, excellent design and execution. a picture of the complete bike with the modifications would be great. cheers mark

Photos coming up soon - yet to make a nice-looking brake stay
There is nothing good or bad, but thinking makes it so

William Shakespeare

#8 feetupfun

feetupfun

    Advanced Member

  • Members
  • PipPipPip
  • 1,904 posts
  • Location:Gladstone Australia
  • Bike:1963 to 1981

Posted 31 January 2011 - 01:40 AM

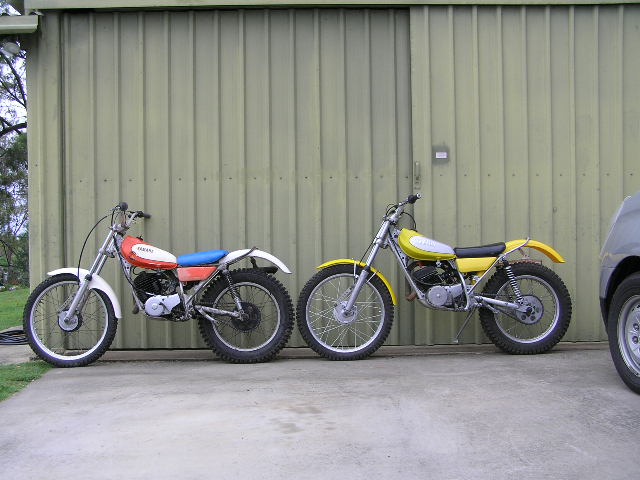

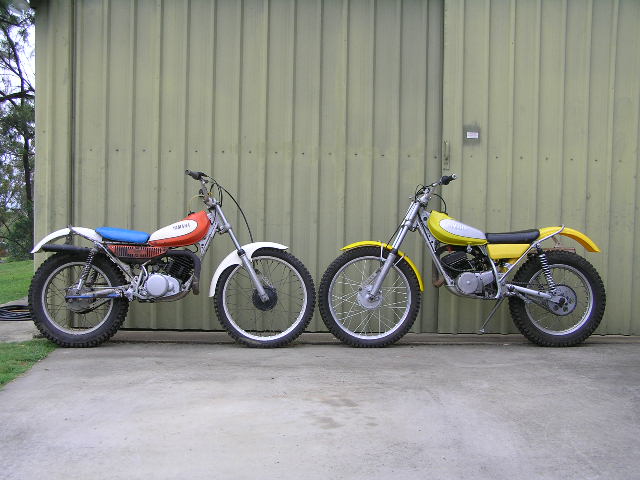

I still haven't made a new brake link but the rain stopped for a while so I took some photos. The yellow TY175 has the modified frame and swingarm. The orange TY175 has a standard frame and is there as a visual reference.
