2stroke4stroke Posted November 19, 2014 Report Share Posted November 19, 2014 Does anyone know how to wire a cut out button on the TL 125? The wires to the coil end in a multipin connector with no obvious way of introducing a wire. Any advice appreciated as, apart from the stuck throttle scenario, I'm getting fed up stalling it every time I want to walk a section. Quote Link to comment Share on other sites More sharing options...
ourian Posted November 19, 2014 Report Share Posted November 19, 2014 You need to find which is the positive wire to the coil, then splice one of the wires from the cut out switch in to this positive wire whilst allowing the positive wire to still connect to the coil and then connect the other wire from the cut out switch to earth. Cut out switches work by sending the positive voltage to earth when pressed or in the case of a lanyard pulled off i.e. the voltage doesn't reach the coil to make a spark it is diverted straight to earth. Quote Link to comment Share on other sites More sharing options...
bilks Posted November 19, 2014 Report Share Posted November 19, 2014 (edited) As Ourian says just splice into the black and white wire feeding the coil. http://www.kaila.net/tl125/tl125wd.html Edited November 19, 2014 by bilks Quote Link to comment Share on other sites More sharing options...
dadof2 Posted November 20, 2014 Report Share Posted November 20, 2014 Agree with above. From memory TLs used to come with key operated ignition on/off switch so part of your system has probably already been removed Quote Link to comment Share on other sites More sharing options...
baldilocks Posted November 21, 2014 Report Share Posted November 21, 2014 I think he means SWM TL 125 not Honda did the SWMs come with a key ? Quote Link to comment Share on other sites More sharing options...
2stroke4stroke Posted November 21, 2014 Author Report Share Posted November 21, 2014 You're right Baldilocks, t'ain't a Honda. Thanks ourian, I know the principles, I've done enough of them over the years. There's usually a bullet connector or other means of getting the cut out wire in to the system. The standard electronic ignition on the SWM has several wires coming up from the generator bound together in a sealed outer which enters the back of a multipin plug which has a well sealed joint to the coil with no obvious access. I had hoped to get the SWM specifics from someone as I'm sure they must have had a cut out when new and I certainly don't want to have to use destructive access, even if I could tell which was the right wire. Being electronic there's no way of taking a wire in at the points. Quote Link to comment Share on other sites More sharing options...

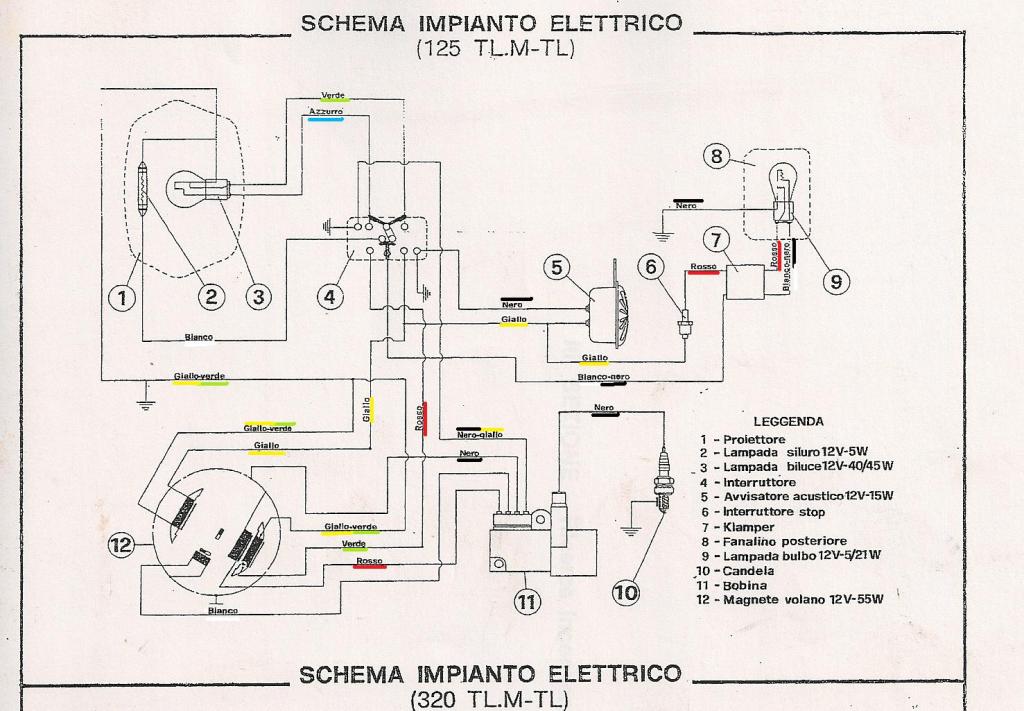

motoswm Posted November 21, 2014 Report Share Posted November 21, 2014 (edited) Sorry guys been a bit busy....yellow and black wire for 125 kill switch Edited November 21, 2014 by motoswm 2 Quote Link to comment Share on other sites More sharing options...
2stroke4stroke Posted November 22, 2014 Author Report Share Posted November 22, 2014 Thanks Martin - no switch gubbins on mine, though it would have had, so I'll proceed on the basis of the diagram. Quote Link to comment Share on other sites More sharing options...
HPierre Posted June 14, 2020 Report Share Posted June 14, 2020 (edited) Hi, on my TL 320 there is a blue wire from the coil connected to earth – should I split this one by a kill switch (lanyard pulled off)? Edited June 14, 2020 by HPierre Quote Link to comment Share on other sites More sharing options...
