Strange Carb For A Cub

vinnied
in Pre-65 Bikes

Featured Replies

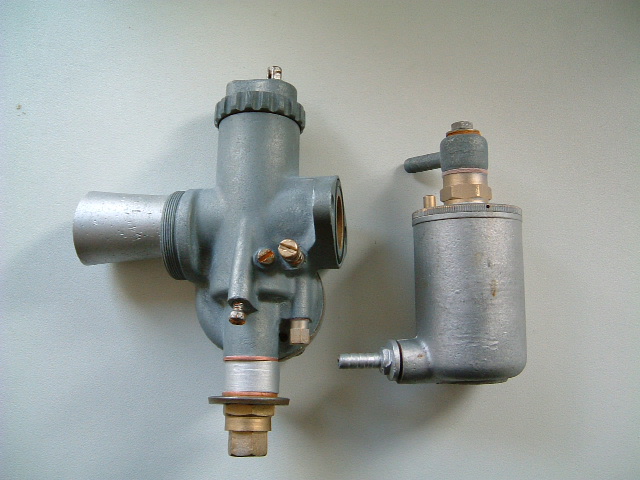

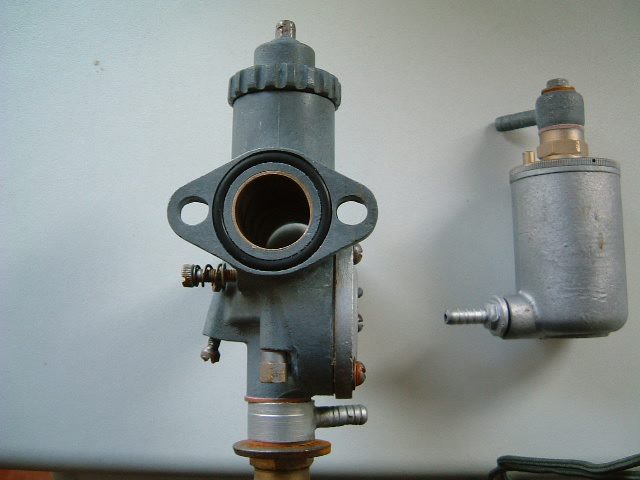

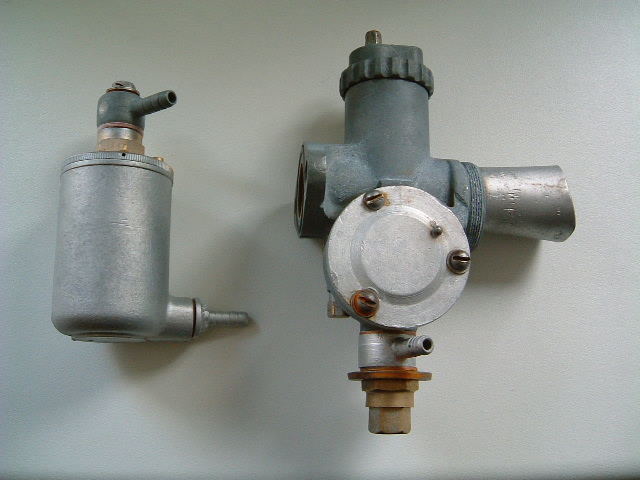

A friend of mine asked me to put up some pics for him, the carb was used on a Cub

anybody seen one before

How was it set up

Vinnie :thumbup:




  • Quote

    It's a chopped Monobloc with a remote float chamber, normally used for speed events - road racing,grass tracking, etc.

    The remote rubber mounted float is used to stop vibration from frothing the fuel in the carb. leading to fuel starvation at awkward moments.

    This one looks to have had a pretty hard life!.

    Just noticed it's been crudely sleeved down to suit the cub with what looks like a piece of copper water pipe.

    Edited by montaco
