Electronic ignition

Featured Replies

I've just purchased electronic ignition from electrex world for my ty250! They say it needs setting up with strobe, what degree off tdc do I need for ty250? Never set timing before ?

I've got 1 of their ignitions in mine, pretty sure the instructions were to set it up mid slot to start with & fine tune to suit if needed

Because you use the original flywheel the marks should line up at the standard firing point. I can look in about half an hour & let you know what the standard firing point is & check my instructions

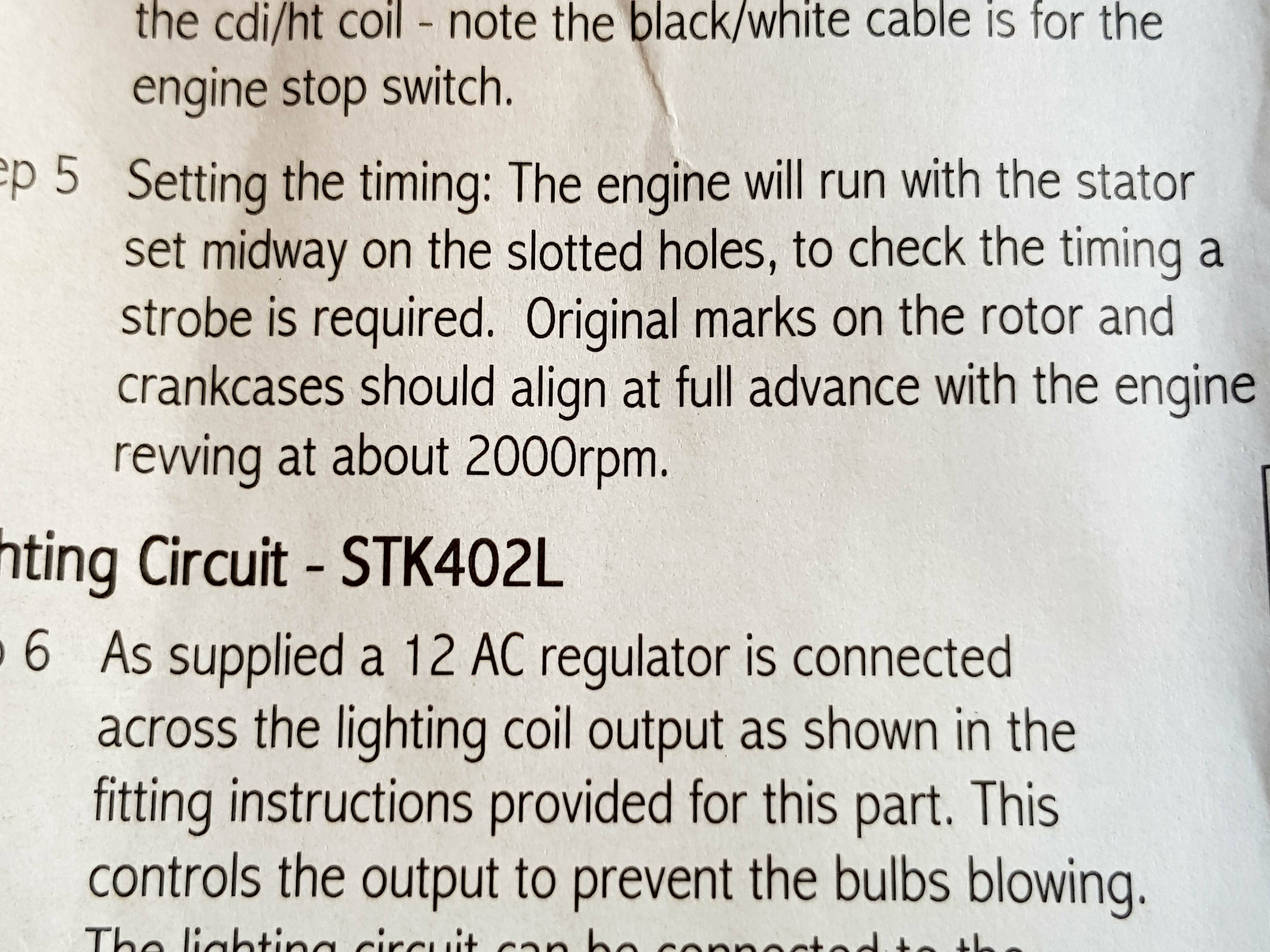

This is what my instructions say, no need for a degree figure as marks should line up when it fires

Standard timing is set 3.1mm +/- 0.15mm


  • Author

Thanks Tony27 ! I'm gonna try her out later, see how she goes ??

Can't find timing marks on my flywheel so I have to assume they were on the external band that was previously removed from it. Should be easy enough to add marks in the correct place if needed

  • Author

No timing marks on mine!  I found tdc & marked it up best I could. I've had to retard it to get them to line up with strobe light. Still splutters on low revs !

  • 3 weeks later...

I've timed several engines, including 4 cylinder cars, and found it best to set it up by adjusting for best tick-over and slow running.   If you have clean running then who cares what the actual degrees are?   Could solve your splutters...
