October 10, 20187 yr Does anybody know where to find the stationary pointer mark for TDC on a 74 TL125 K1 case?
October 10, 20187 yr On the left cover there is a srewed plug at the top On removal turn the engine and two marks are there one marked F this is the ignition timing mark and the other T to adjust the tappets Acording to the book this should be TDC

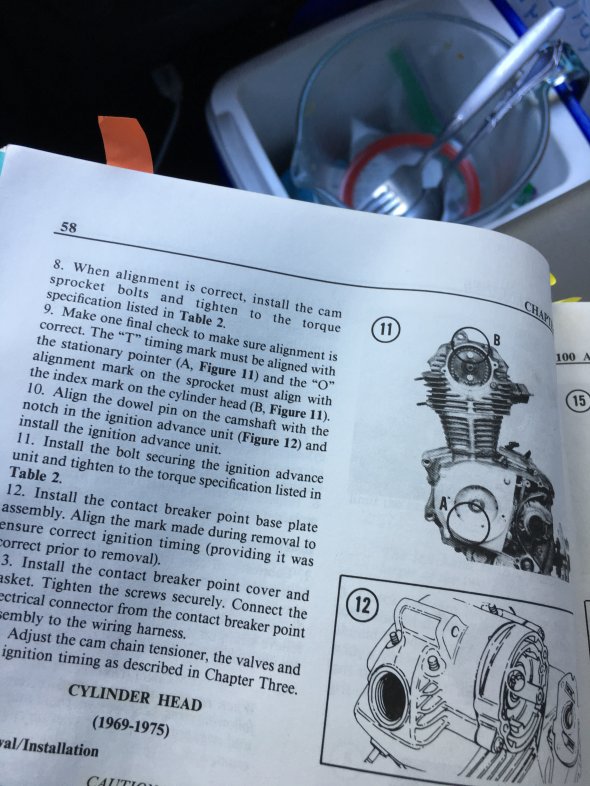

October 10, 20187 yr Author Thanks I was on page 57 of the Honda 100-350cc OHC Singles 1969-1982 Service repair maintenance manual by clymer and it has a picture showing a “stationary pointer” at the bottom of the case. See attached photos. It may be for a different year.
October 10, 20187 yr My info came from the Honda TL125 owners manual and the cover look different It has two cover one in the center one at the top of the gen casing I do not have the bike any more as it belonged to my wife at the time till some low life stole it
October 11, 20187 yr The drawing in the Clymer book is for the CB/XL/SL series of engines which have a different set-up on the engine left side. Those engines have an internal flywheel where the stator coils are outside the magnet, the genuine TL engines have an external flywheel where the stator coils are held inside the cover referred to by Naichuff with the rotor spinning around the outside of them. What letters does the engine number start with? This is what the TL casing should look like, the hole at the top is where the timing pointer should be. Edited October 11, 20187 yr by craig10
