Hi guys, I’m just trying to bend my head around the electrics side of my Sherpa 183 350cc (1976).

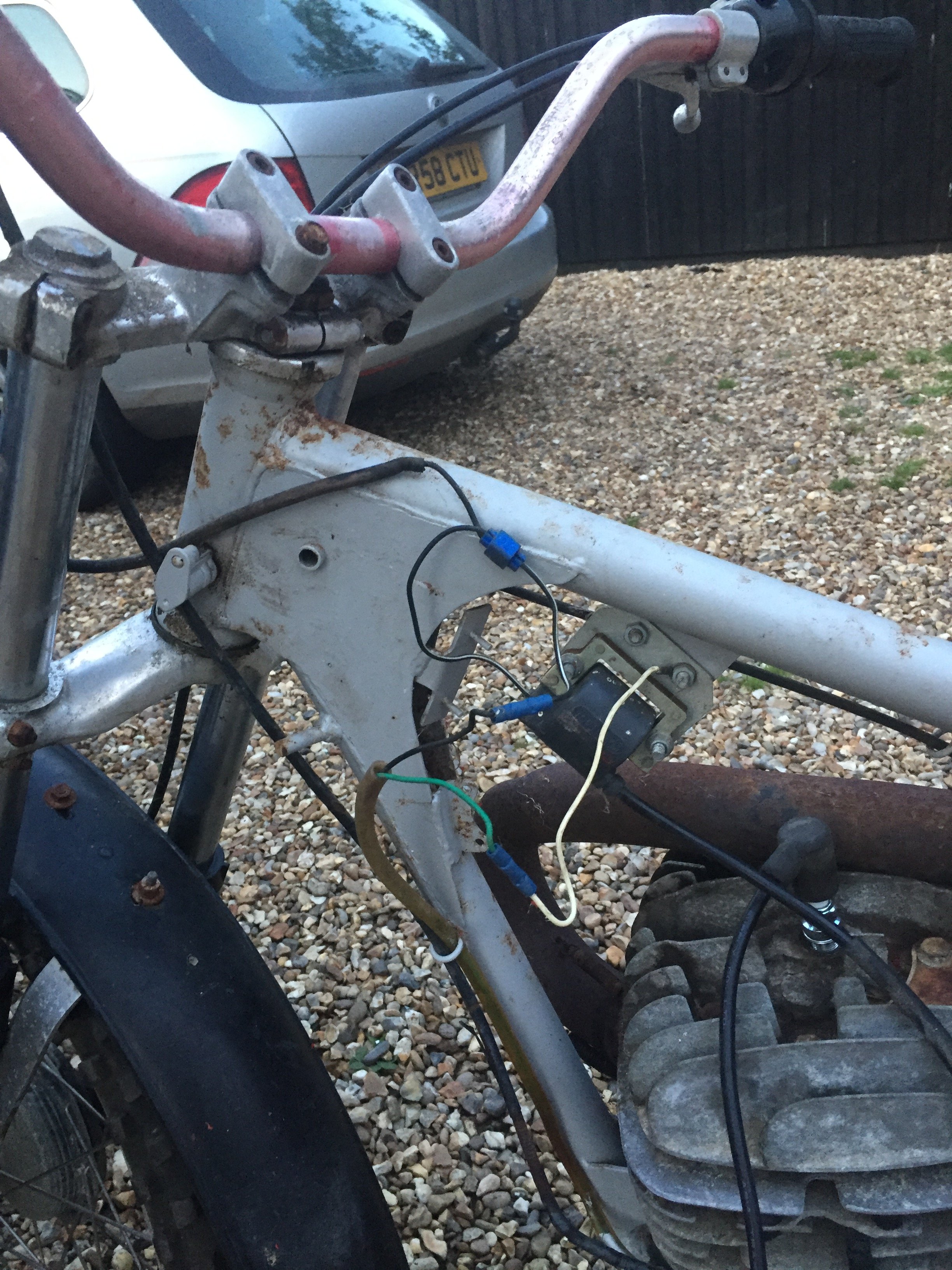

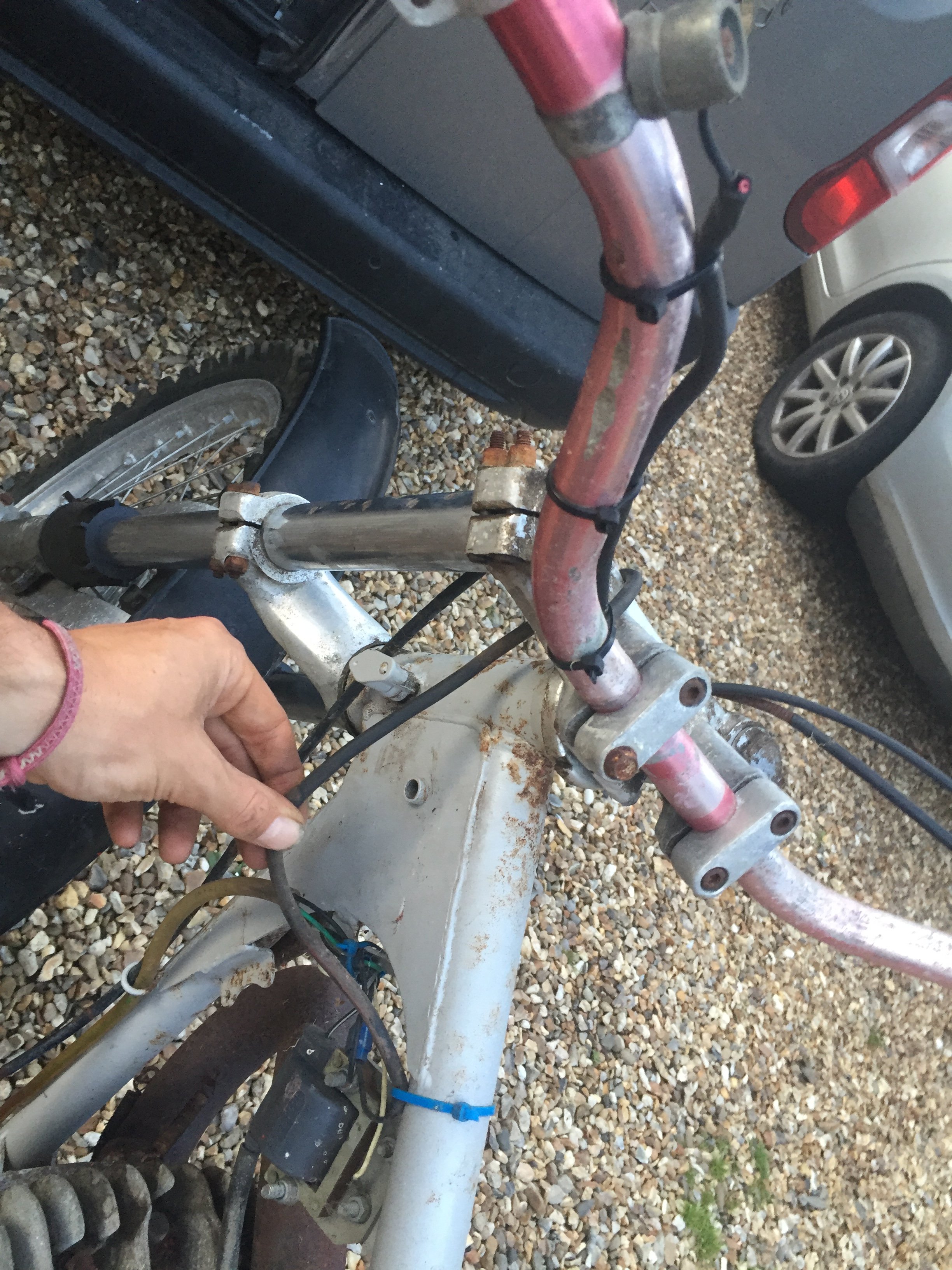

The bike isn’t starting and has been stood still for a number of years. I’ve cleaned up the carb and jets, but after replacing the spark plug I realised there isn’t actually any spark coming through. I’ve taken a couple of pictures of the wiring which I’m just not too sure about.

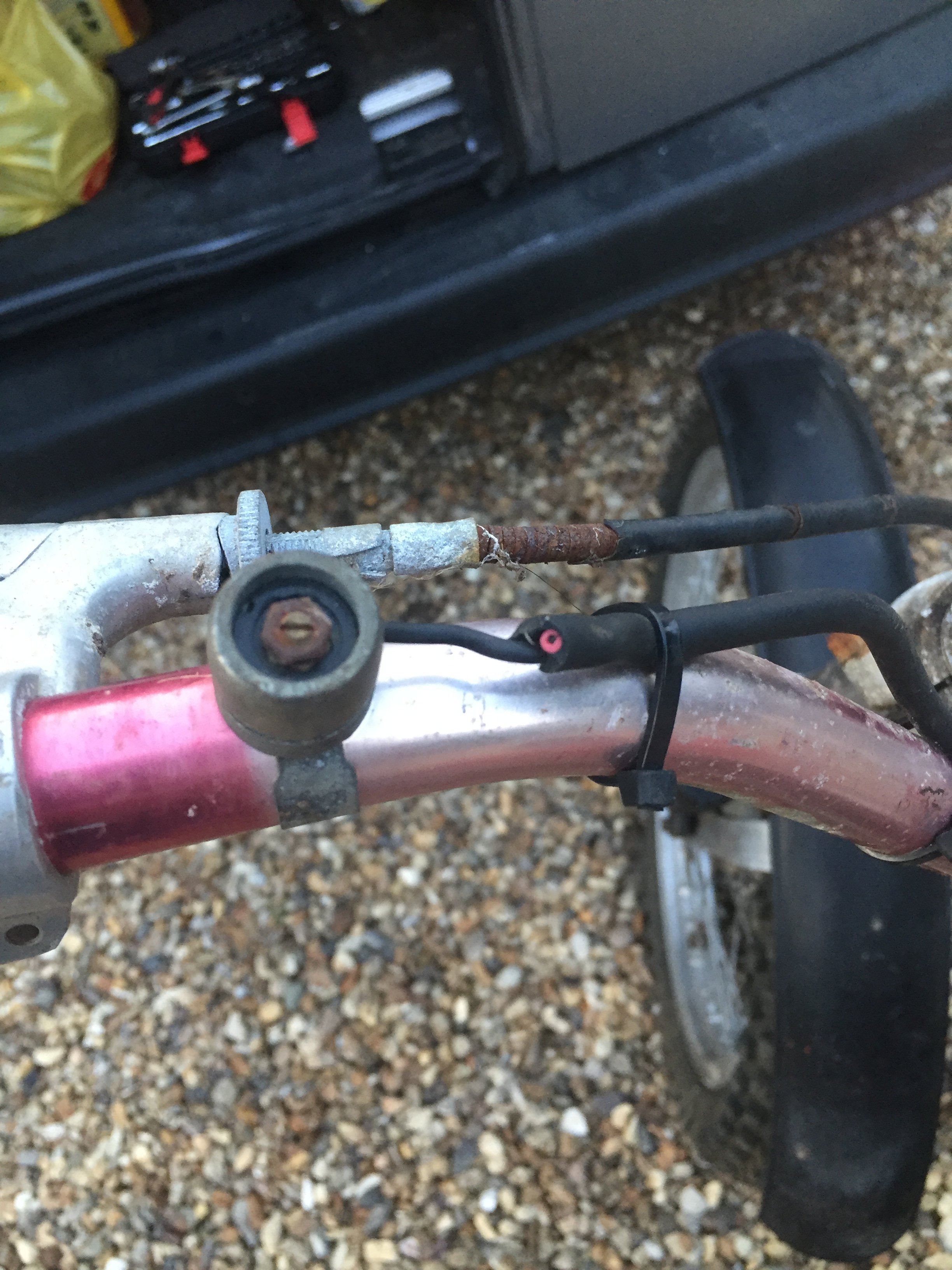

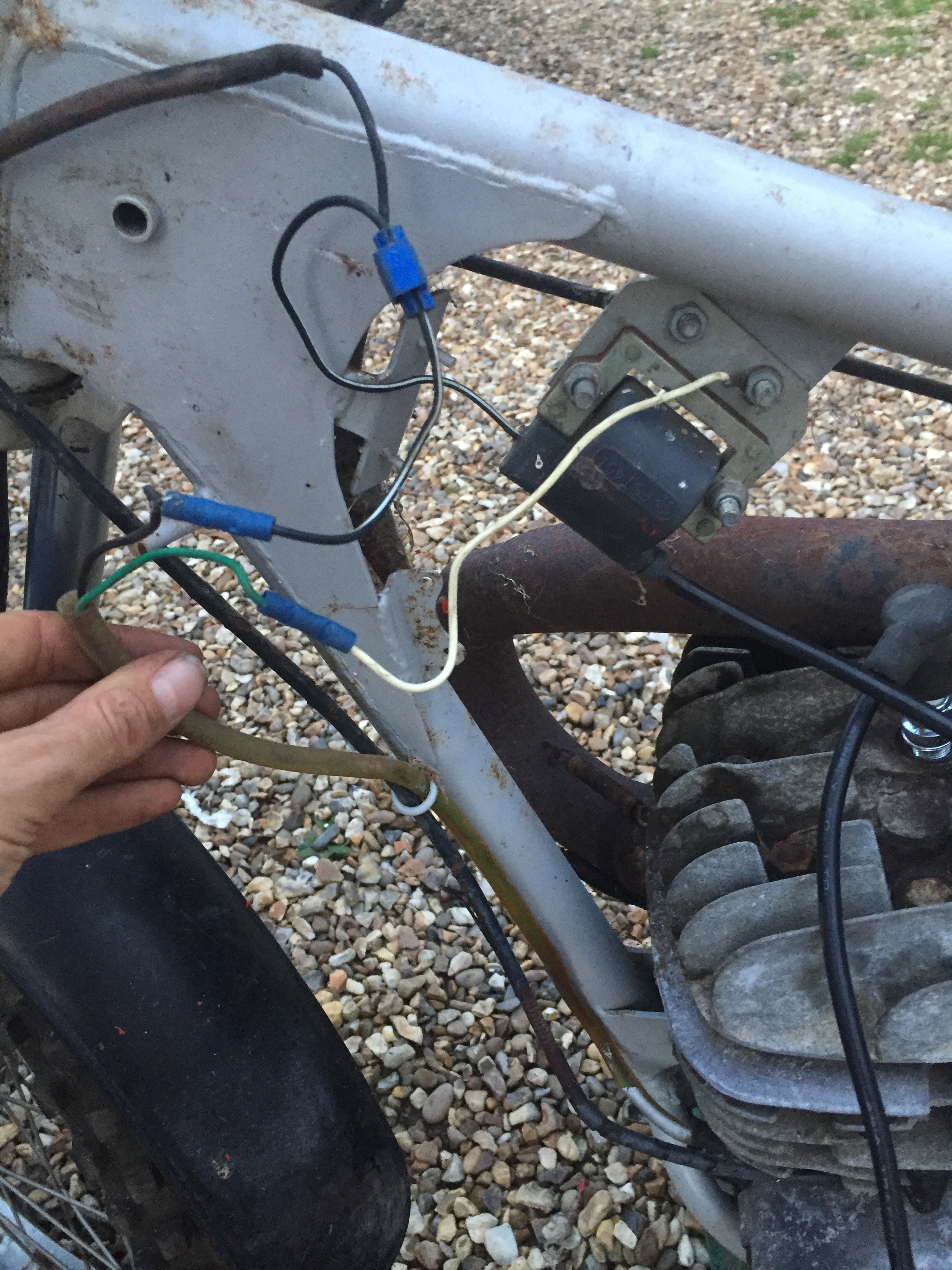

There appears to be a cut out switch installed. And black and green cables running up from the magneto.

It all looks a bit dodge so thought I would ask the specialists here. Please let me know if you need any more pictures or information.

Many thanks in advance.

James
