Oset 16.0 24V - Kelly Controller Installation Wiring

Recommended Posts

Hi, after breaking a couple of controllers in the process I’ve now completed a Kelly Controller installation on an OSET 16.0 24V.

The problems I had were down to my wiring connections so hopefully this thread will help anyone considering the mod and avoid them making the same mistakes.

I have focused on the wiring here as it’s what caught me out. I’ve not added much info on the controller or batteries so ask me questions if needed or look at the other threads that discuss them.

First off, even without my controller breakages factored in it’s a costly mod with the new batteries, charger, controller and wiring so I’m not justifying this on a cost basis and will leave that to you to judge if it’s worth it to you.

Benefits:

- OSET now can take any lipo battery (within reason!). The 8 cell 33.6V lipo I had would not work with either the 24 or 36V OSET controllers.

- I can program speed of pickup and top speed via laptop

- Lipo benefits – light battery, lasts ages, quick to charge

- My 16.0 24V kicks ass compared to a stock 36V model on sealed lead battery.

What I have:

- OSET 16.0 24V model

- Kelly Controller KDS 48200 (KDS36100 would also work apparently) – bought online from Kelly Controllers website

- Heavy gauge RC silicone wiring, shrink wrap and XT60 connectors

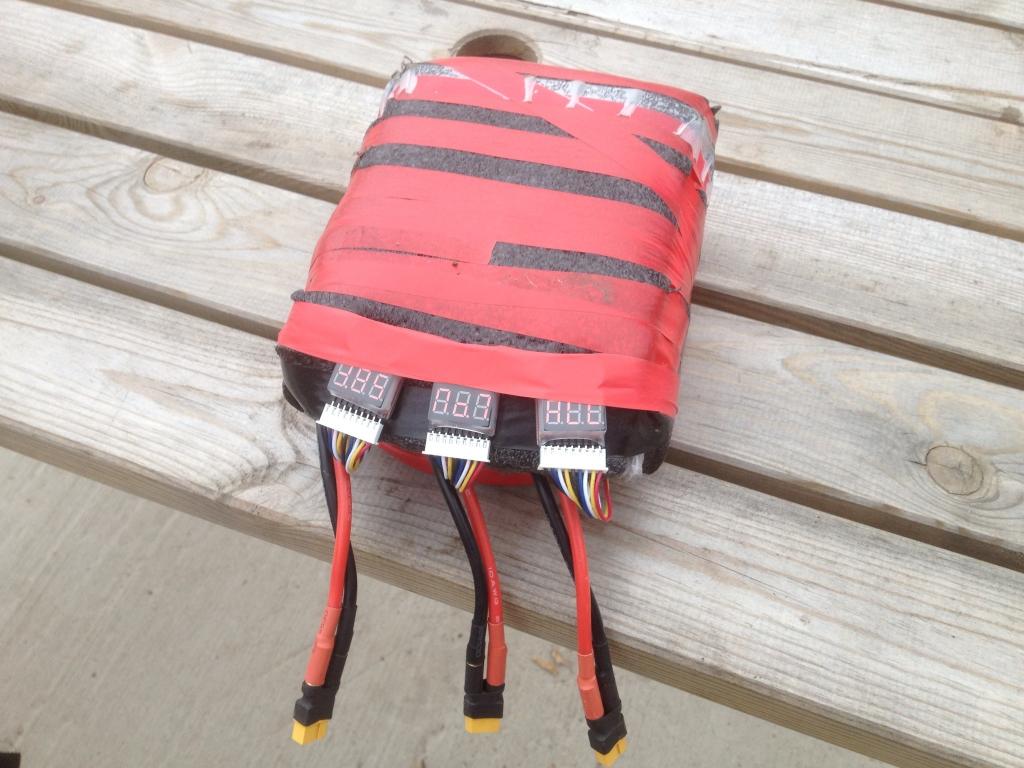

- 3 x Zippy 8 cell lipos – 5800 mAh x 3 = 17,400 mAh & 33.6V max / 29.6V minimum

- OSET 36V relay – bought from oset but pretty sure you can use any relay with the right voltage thresholds. You may even be able to use the 24V one but I have not tested it.

- Cheap soldering iron but decent solder (not the free stuff that comes with the iron)

Notes on wiring:

- Use the resistor and diode that comes with the Kelly Controller. These are soldered to the relay terminals as I’ve tried to show in the pictures.

- Use shrink tubing and a heat gun rather than electric tape to produce a better quality result.

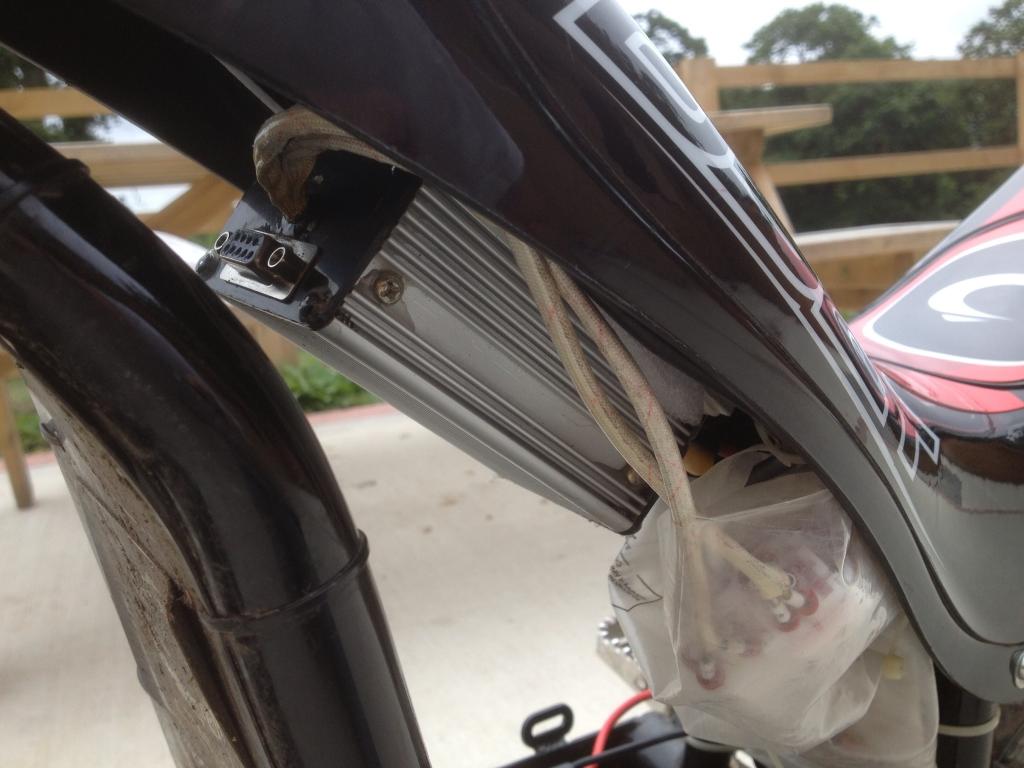

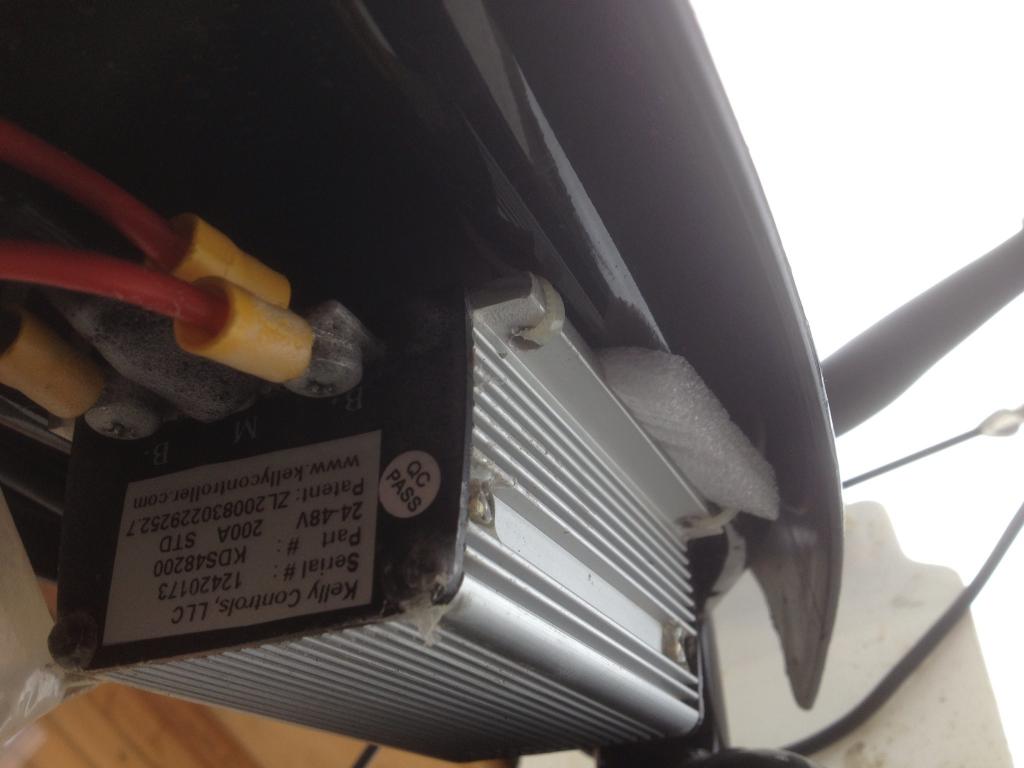

- New controller is currently fixed in place using zip ties. Not ideal and I will sort this out soon.

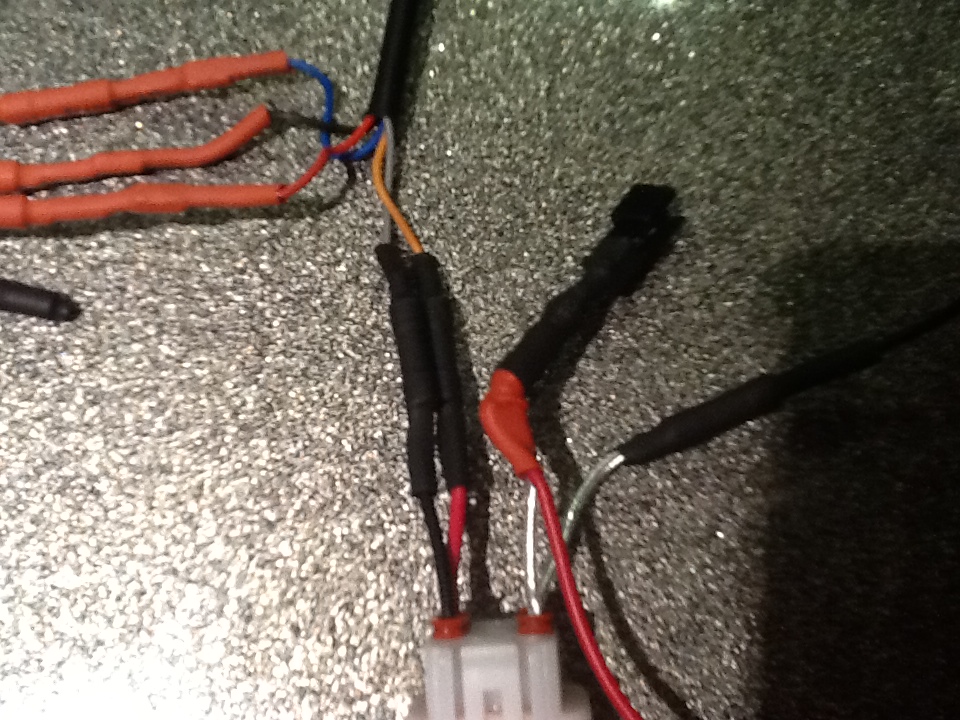

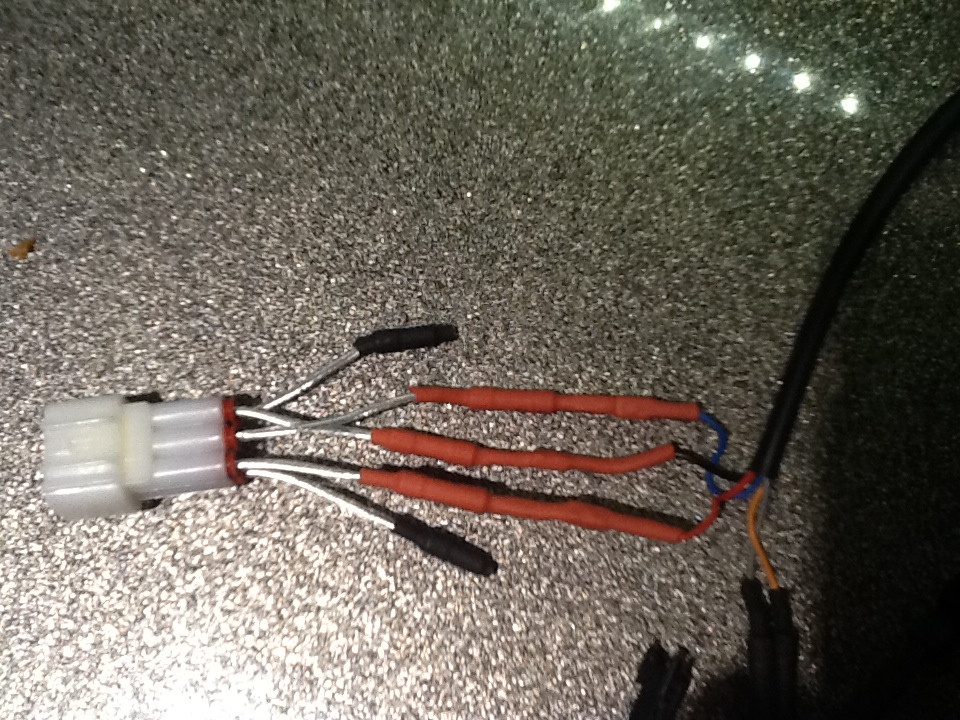

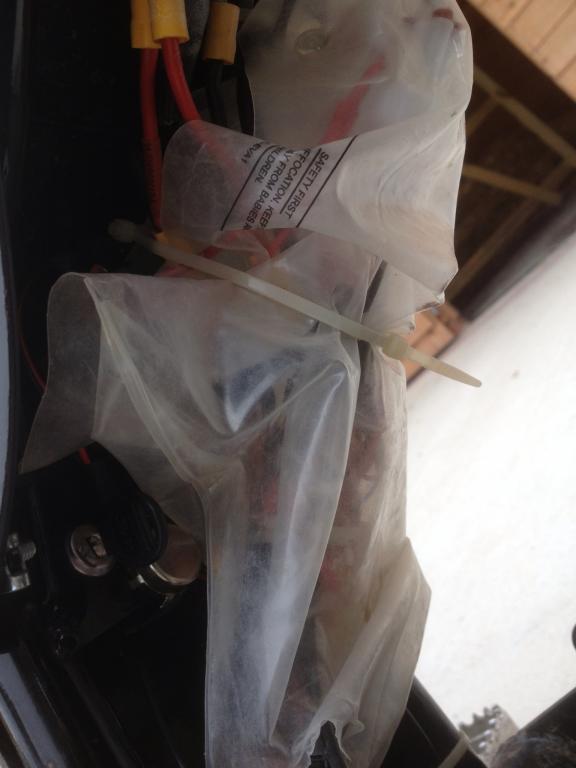

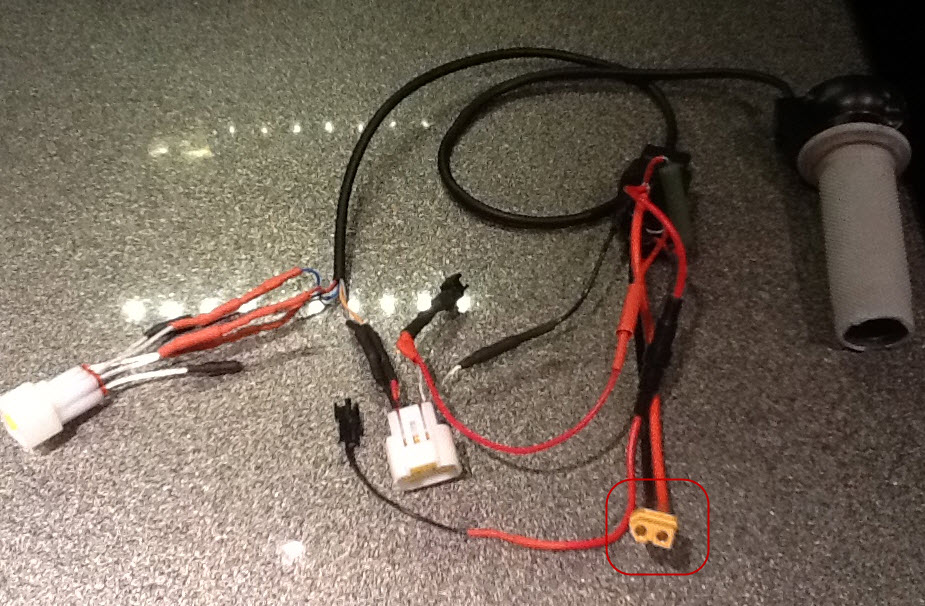

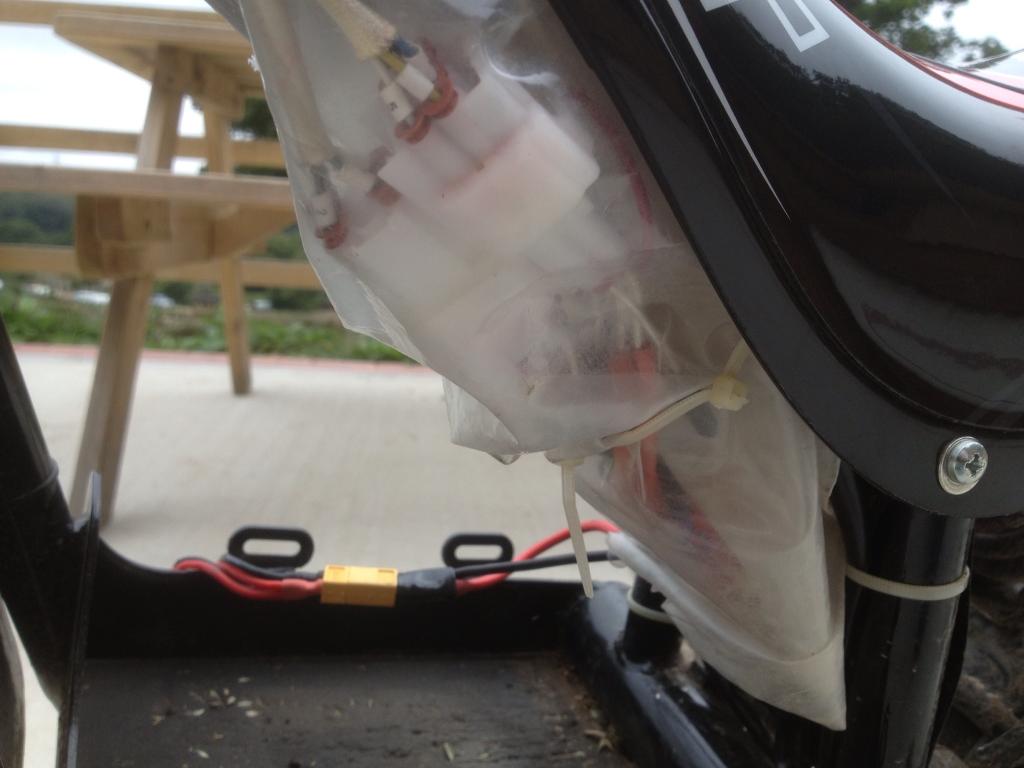

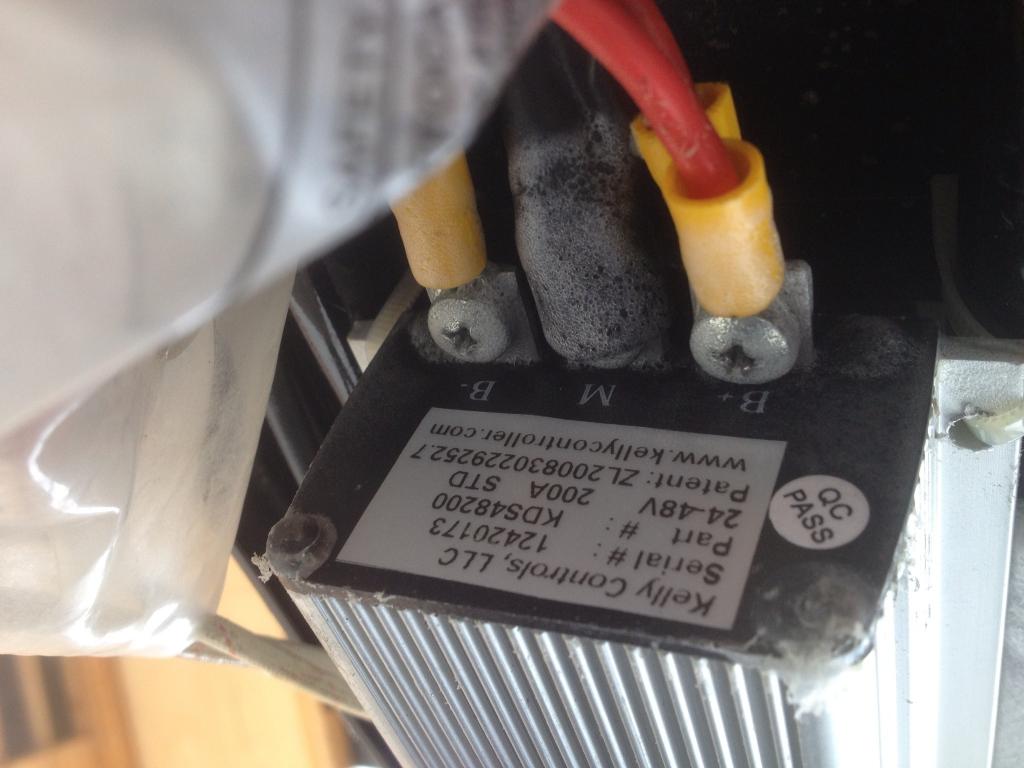

Take a look at the pics if you are interested. I hope they help someone.










Also on the topic of mods:

Running 2 x 5000 mAh 6 cell turnigy packs was a great mod I did initially without needing a new controller. This new setup is much faster though and lasts longer.

I fitted a Stomp mx seat to my OSET 12.5 model which has been great for my youngest. I see no reason why this wouldn't fit the 16.0 either.

Cheers,

Rich

Share this post


Link to post
Share on other sites


HI, This is very interesting to me, as I have just bought my oldest boy a 2nd hand 16 and it seems to lack the power that the 12 has.

What sort of cost was involved in doing all this?

Share this post


Link to post
Share on other sites


I would double check the 16 is working at it's best and current batteries are 100% as I have both 24v models and found the 16 was always faster on like for like batteries. I thought this was due to the bigger wheels? Others may have had different experiences. It did go flat quicker though.

to answer the question costs were (you will need to add shipping, this can increase the base costs a lot!):

Batteries - US$212 - for 3 x ZIPPY Compact 5800mAh 8S 25C Lipo Pack from hobbyking

8 cell lipo charger ans PSU - US$68 - from hobbyking

Controller (KDS36100) US$59 from kelly controllers.

Other wire and connectors say US$50

There's work/hassle involved with changing these particular batteries to an 8 cell JST-XH balance connector as each one ships with 2 x 4 cell connectors. I think folks have made cheaper 'OSET' packs by combining smaller voltage packs in series.

Rich

Share this post


Link to post
Share on other sites


Hi Rich,

I have purchased a kds36100 from Kelly, but was totally unsure on how to install. Do I need to change batteries as you did, or can I just install controller and will bike be ready to go? (Bike is 24v 16")

The other thing I am not sure about is what to do when connecting to pc !

Any help would be greatly appreciated.

Sean.

Share this post


Link to post
Share on other sites


seandfletcher

Posted Yesterday, 06:27 AM

Hi Rich,

I have purchased a kds36100 from Kelly, but was totally unsure on how to install. Do I need to change batteries as you did, or can I just install controller and will bike be ready to go? (Bike is 24v 16")

The other thing I am not sure about is what to do when connecting to pc !

Any help would be greatly appreciated.

Sean.

Share this post


Link to post
Share on other sites


Hi Sean,

It's not necessary to change the batteries but you will be able to do this without any fuss after installing the Kelly. The 24 and 36v controllers have preset voltage input cut offs and are not programmable.

I am thinking of doing the same to my little 12.5 as my boy is battling with the terrible all or nothing power delivery where my new Kelly setup on the 16 is great giving real control at lower throttle positions without limiting top end speed. I don't know if you noticed but turning the potentiometer down basically makes it worse and creates a big dead spot.

If you want to do the install make sure you have the resistor and diode that came with the controller. More on wiring in a min..

To program it you need a laptop and the software is available to download for free from the Kelly website. The software is very easy to run and has a series of menus (more later). The controller needs a special dongle that comes with the controller so you connect that to the serial port on the kds36100 then the other end into your PC, using a USB serial converter cable if you don't have a serial port. Most modern pcs don't. If using a converter cable install the driver for this and get it installed before trying to connect to the controller for the first time. You really need to have the controller on the bike and fully wired up to configure it. It is important power does not flap at all while you are programming it, this will screw up the controller completely.

Menus: most of the default values are ok. Change the throttle to hall type and set min voltage to 1 and max to 4.

If you are using the stock batteries then 100% top speed should be ok to start with without any surprises. The pick up can be altered but all down to how snappy you want it. Mines on 3 at the moment. Max voltage at 60% should be good to start. I'm am not sure if the batteries could deliver more than this any way. This setting is a good way of controlling the torque if you stick bigger batteries in later on.

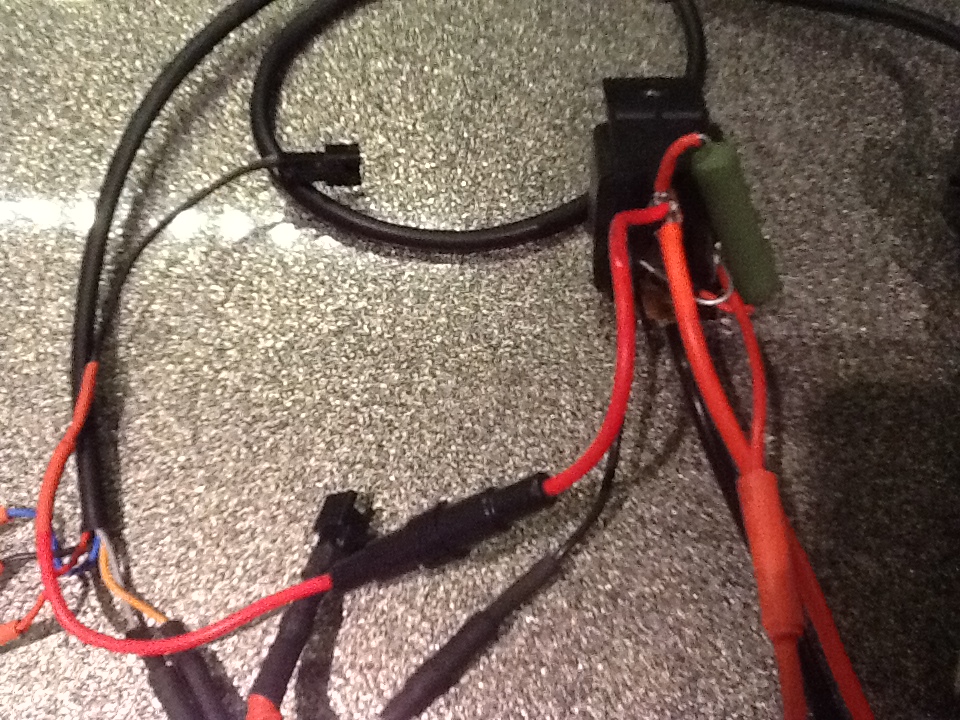

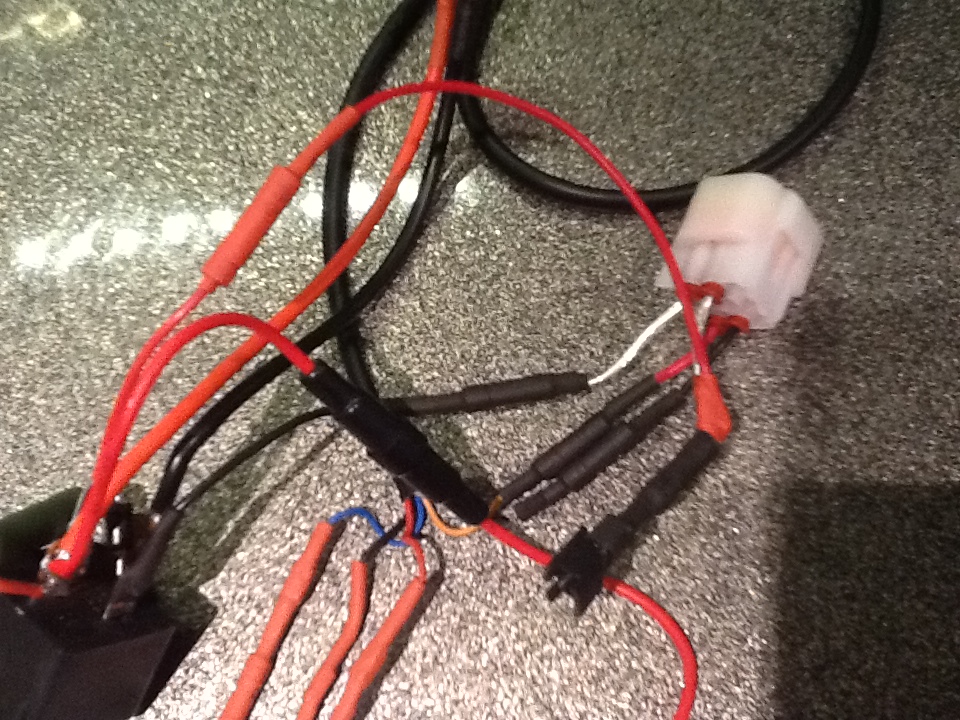

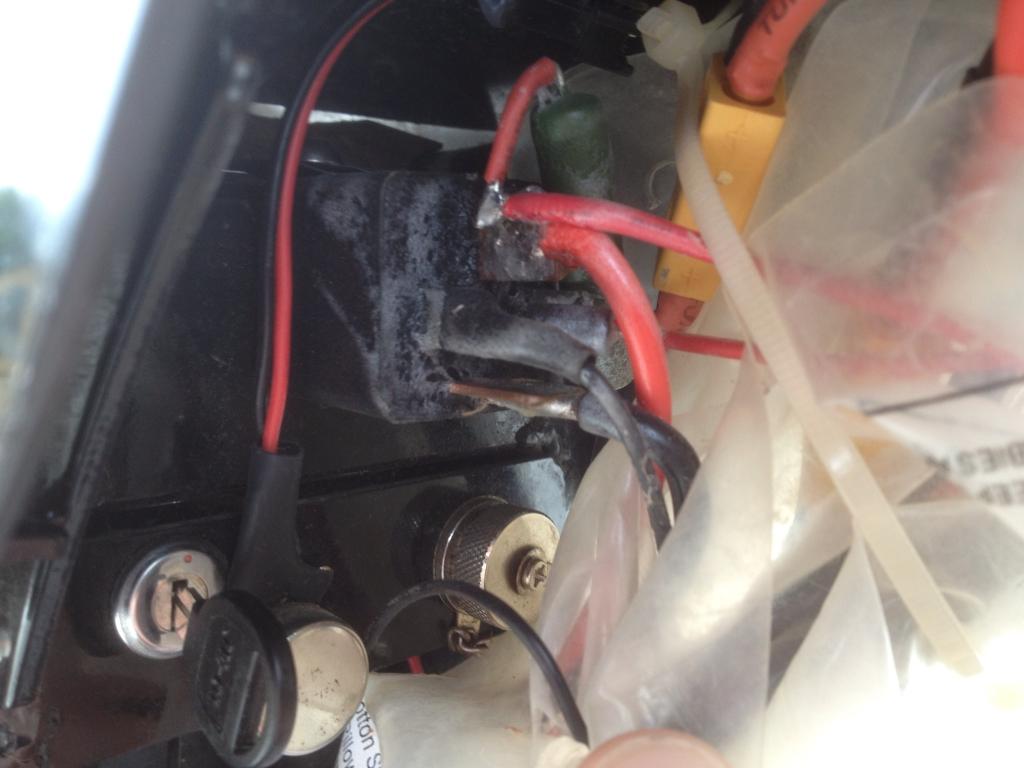

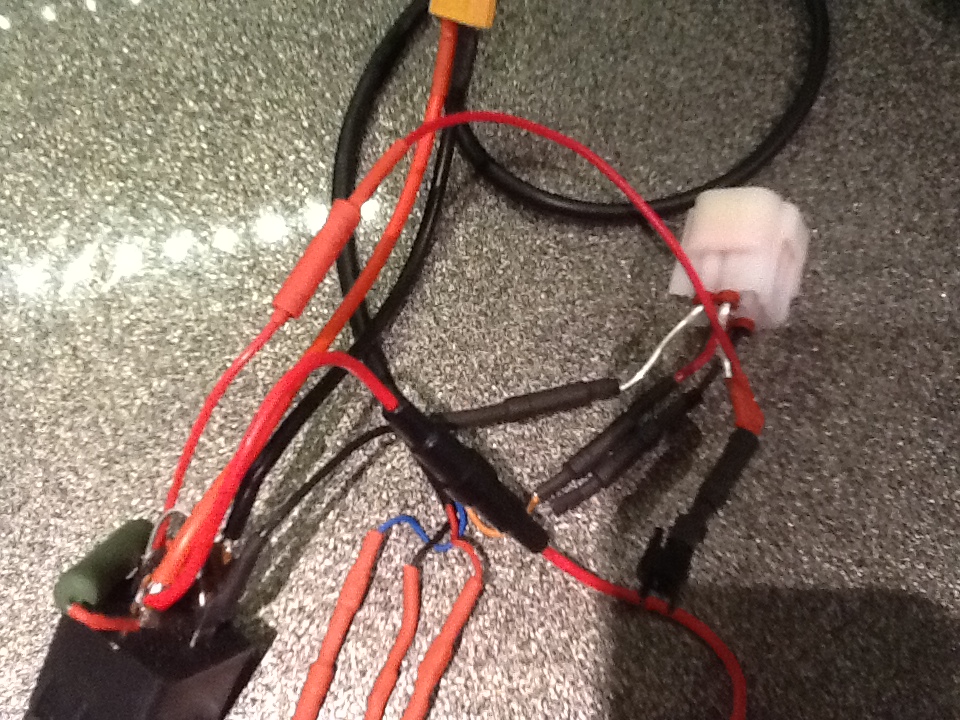

Wiring: pay attention to the resistor and diode wiring on the pictures that show how they are soldered on to the relay. These pictures do not show the controller wiring so I can take pics of these if needed.

Ask anything specific if this leave gaps.. Good luck.

Rich

Share this post


Link to post
Share on other sites



Hello mxoset,

Thanks for all the guidance and well documented installation of the Kelly controller.

I have just received my KDS48200 and am ready to start upgrading my sons Oset 16" 36V.

I do have a couple of questions I was hoping to get your answers on before I start.

If you want to do the install make sure you have the resistor and diode that came with the controller. More on wiring in a min..

and

Wiring: pay attention to the resistor and diode wiring on the pictures that show how they are soldered on to the relay. These pictures do not show the controller wiring so I can take pics of these if needed.

When I opened up the package from KellyControllers there were 2 items I did not manage to see on your pictures (red square on the attached pic). Are these the diodes? Did you use them both? and do you have a picturee showing where you put them?

Greatful if you could post some more pictures of your upgrade. Pics of the controller wiring? Any pics of the controller installed on the bike?

Are you satisfied with your upgrade??

Thanks!

Regards

Eirik

BTW I'm going for 2x2 ZIPPY Compact 5800mAh 5S LIPOs in series.


Share this post


Link to post
Share on other sites


Hi Eirik,

Looks like you have everything there which is a great start.

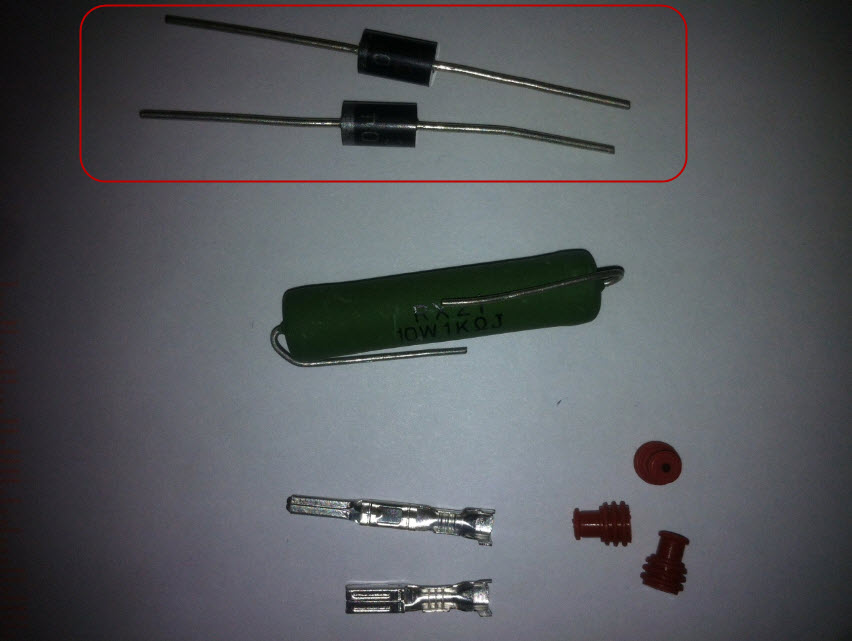

Those are diodes in the red box. You only need one of these and the big green resistor.

They connect across the terminals on the relay.

Sit you relay down on the table the same orientation it is on the bike with the fixing hole at the top.

The green resistor is soldered across the top terminal and bottom terminal.

One of the diodes is soldered between the two middle pins, left and right. I believe the orientation is not important but followed the wiring diagrams I had to the letter and kept the silver cap of the diode to the right terminal. This is best seen on my 6th picture.

Careful on the wiring as all this exposed electronic bits could be a shorting risk later on if stuff was to touch it, so I put a bit of tape on the exposed 'legs' of the resistor and once I'd finished all the soldering of all the wires i blasted the whole relay and all the terminals with liquid electrical tape (ebay).

I will take some pictures and do a complete wiring layout diagram, will be done on Thursday and uploaded later this week as I have a day off.

Take your time on this and you'll do a better job than me easy. I've ended up with far too much wiring all bunched up by the controller. You won't regret the effort. Those batteries will give some serious power mine are 8 cell vs your 10 when wired in series! You'll be able to program pickup, max current and speed on the controller if it's too crazy.

Ill be back with the promised pics and diagram ASAP.

Cheers

Rich

Cheers,

Rich

Share this post


Link to post
Share on other sites


Hello Rich,

Thanks again! I'll get some liquid electrical tape.

I'll receive my order from HobbyKing tomorrow so then everything should be ready for the conversion to LiPo and Kellycontroller upgrade this weekend.

Looking forward to receive the diagram and the pics of your upgrade.

Cheers,

Eirik

Share this post


Link to post
Share on other sites


*** updated.. I had the diode upside down. use this version 16/08/13 ***

Eirik, here's the wiring diagram. Sorry the Relay part is a bit fussy!

if you can save the connectors for the key switch and reuse them on this new loom you are on to a winner.

** I also forgot the stock 45A fuse on the diagram *** It is still there between the +'tive on the battery and the connection into the relay. **

Pics to add tomorrow.

Cheers

Rich

kelly OSET wiring diagram r harris 160813.pdf

Edited by mxoset

Share this post


Link to post
Share on other sites

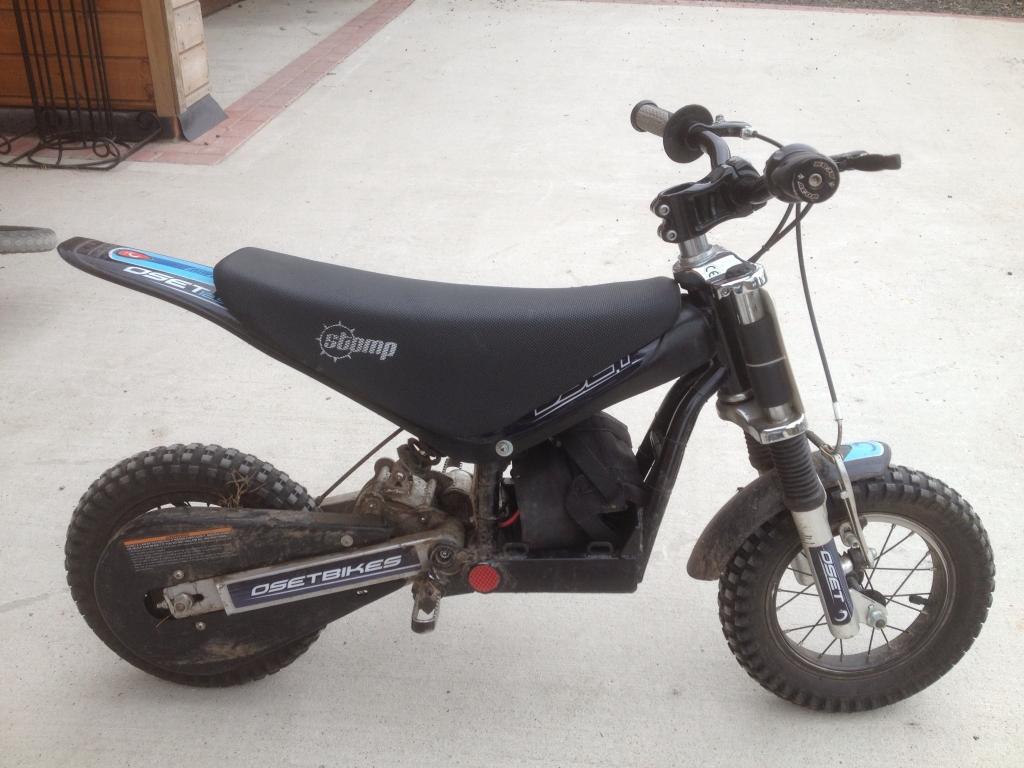

Also to show the seat modification on the 12.5 oset

*** important mod recommended by oset was the bar end caps to protect the throttle unit. ***



Share this post


Link to post
Share on other sites


Good evening Rich,

Thanks alot for your guidance.

I am close to finishing the wireing but have some doubt about a couple of things.

I can't quite get the pictures and the wirediagram to match.

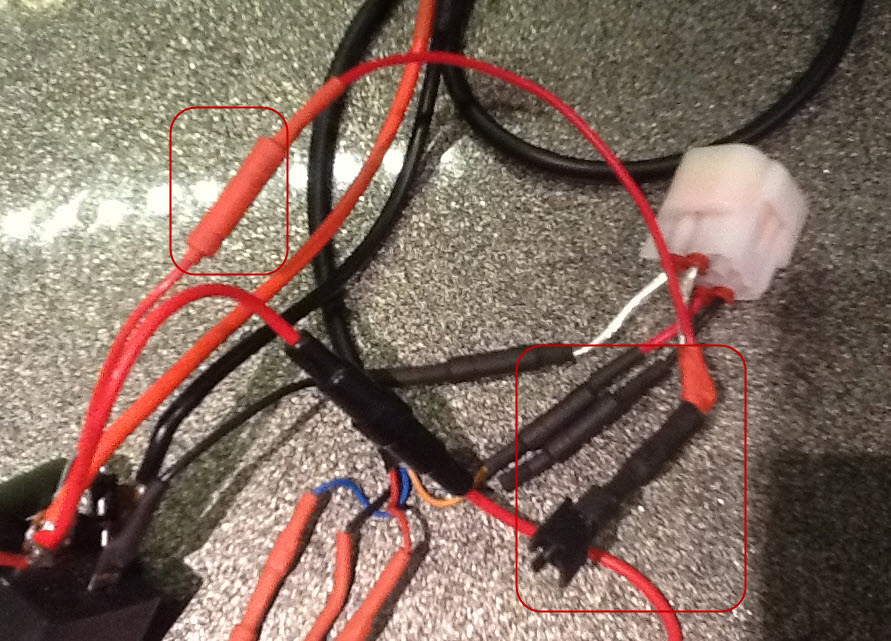

You have soldered a XT60 connector (she) on the top and bottom cable from the relay. After that XT60- have you wired according to the diagram? I.e top (red) to positive on the battery and bottom (black) to B+ on the KDS?

From the relay's right there is a cable that goes to green on the KDS. Does this have a fuse on it? (see pic) And does it have a connector that goes to the key switch?

From the wire diagram I thought that the connectors to the key switch came from left and top on the relay?

And finally: My relay has originally a small cable that goes between top and right (see pic). Should I remove that one?

Appreciate if you can answer these questions.

Thanks!

Eirik

*** updated.. I had the diode upside down. use this version 16/08/13 ***

Eirik, here's the wiring diagram. Sorry the Relay part is a bit fussy!

if you can save the connectors for the key switch and reuse them on this new loom you are on to a winner.

** I also forgot the stock 45A fuse on the diagram *** It is still there between the +'tive on the battery and the connection into the relay. **

Pics to add tomorrow.

Cheers

Rich




Share this post


Link to post
Share on other sites


Hi Eirik, I had to think about these bits too.. Good to double check but you are on the right track.

First off. Yes the relay top and bottom pins run between the battery +ve and b+ on the controller. The relay will only 'open' this path when the key switch is closed and a current runs across the last and right pins. The current will run through the relay to b+ then back to the battery directly from B- to the negative battery terminal.

Last reminder that the top and bottom have to have the resistor (big fat green thing) soldered between them as we'll..

On to your other question.

The loop wire needs to come off. The wiring on this bit of the circuit was trickiest to figure out in my head. Here goes the explanation made as best as I can..

The left and right terminals of the relay are the switching circuit for the relay and need to go live when the key switch is on AND we also use this circuit to supply power to the controller to switch it on.

Start with easy bit.. Connect one of these relay terminals (RIGHT in diagram) direct to the Green no4 Kelly wire. This doesn't have a fuse. The switch connectors are off the other side terminal and top terminal as you said.

To explain more:

To get power into the circuit take a new feed off the top relay terminal. There was a little fuse lead I reused from my old loom for this purpose with a 5A fuse to protect the controller. This 'new' lead from the top terminal has one of the switch connectors attached to its end.

Now the next connection joins two parts of the circuit together so is a Y connection/join. Use the other key switch connector and fix it so it connects to Kelly loom RED no9 AND has an additional short wire going to the 'other' relay activating terminal, LEFT in the diagram.

I've done this the other way in the pictures (Sorry) but the direction you drive the current across the left and right relay terminals is not important. All you need to make sure is the diode you solder between the left and right pins is set so the silver band is nearest to the terminal that links to red no9 lead.

What you have just made is a circuit that when the key is switched on feeds power round the controllers red and green leads and the relays left and right terminals, activating the relay and also powering the controller

Cheers,

Rich

Share this post


Link to post
Share on other sites
