sidstevo Posted December 14, 2023 Report Share Posted December 14, 2023 Hi all. Has anyone got a picture or diagram of how the rear brake cable connects to the pedal bar and the rear wheel. Cheers Sid Quote Link to comment Share on other sites More sharing options...
feetupfun Posted December 15, 2023 Report Share Posted December 15, 2023 22 hours ago, sidstevo said: Hi all. Has anyone got a picture or diagram of how the rear brake cable connects to the pedal bar and the rear wheel. Cheers Sid Sid to get a photo of the front end of the cable, the bike needs to be on it's side or upside down and my OSSAs are currently packed away. I'm not willing to unpack one of them until I'm convinced that you really need a photo. So here it is in words. Pedal bar end: The pedal bar arm has a receptacle for the end of the cable outer. The nipple on the cable inner fits into a holder on the frame. Wheel end: The brake plate arm attaches to the cable inner. The cable outer is held in a receptacle on the brake backing plate. 1 Quote Link to comment Share on other sites More sharing options...

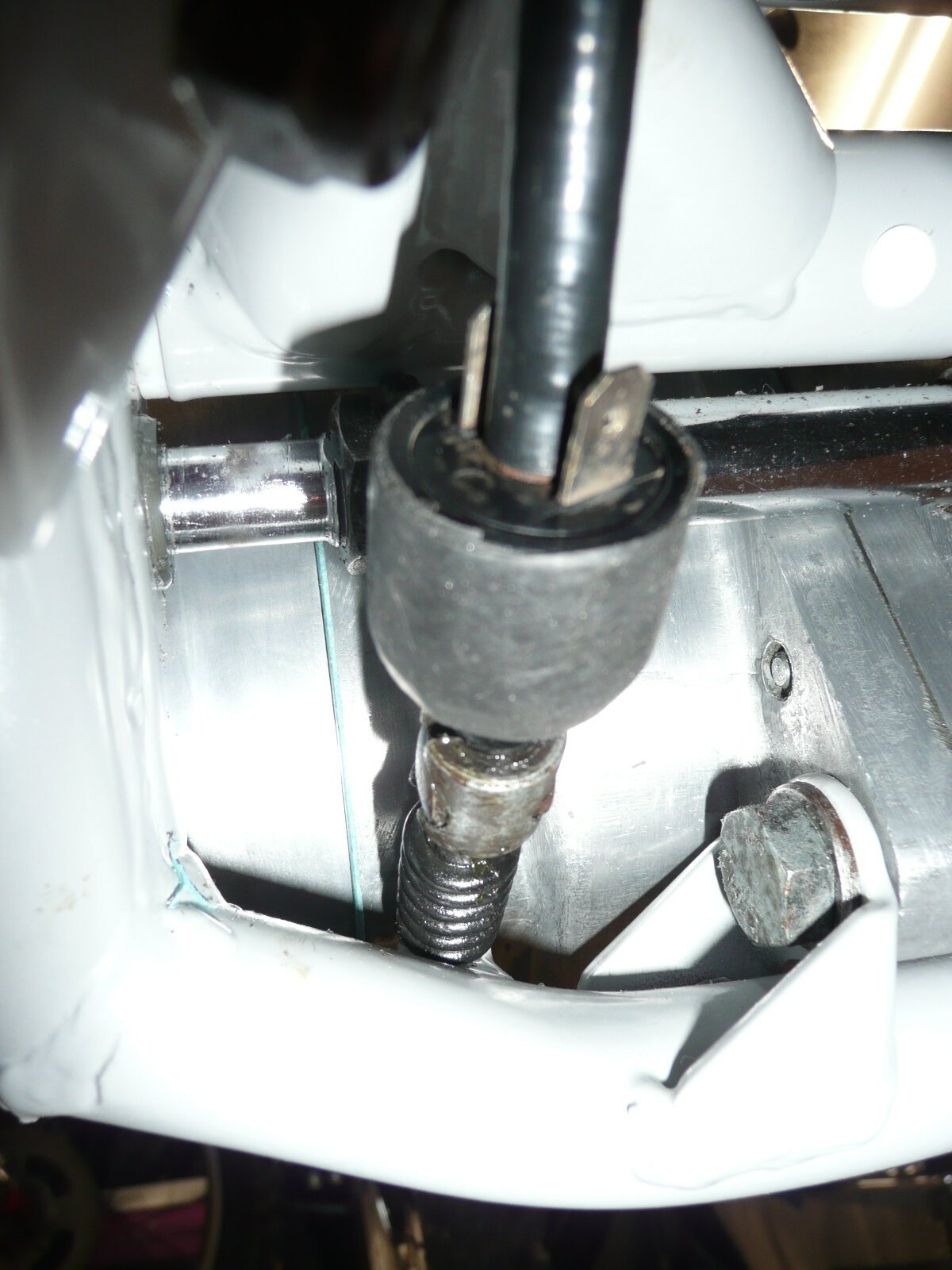

IDC Posted December 16, 2023 Report Share Posted December 16, 2023 Hi Sid, attached pictures as requested, the thing to note is that the outer cable gets pushed to operate the brake instead of the inner cable being pulled. Regards, Ian. 1 Quote Link to comment Share on other sites More sharing options...
sidstevo Posted December 16, 2023 Author Report Share Posted December 16, 2023 Hi Ian Many thanks for your help. Not seen a set up like it before. I can now crack on with the rebuild. Much appreciated Sid Quote Link to comment Share on other sites More sharing options...
djr Posted December 27, 2023 Report Share Posted December 27, 2023 On 12/16/2023 at 9:31 PM, sidstevo said: Hi Ian Many thanks for your help. Not seen a set up like it before. I can now crack on with the rebuild. Much appreciated Sid If you are using the original chain Tensioner , then that needs to be assembled on to the brake pedal shaft at the same time, and I think this is all easier before the engine is fitted ? 1 Quote Link to comment Share on other sites More sharing options...
