Robbo 240

Wheel rebuild

Recommended Posts

Hi all

Had my wheels rebuilt from my hubs

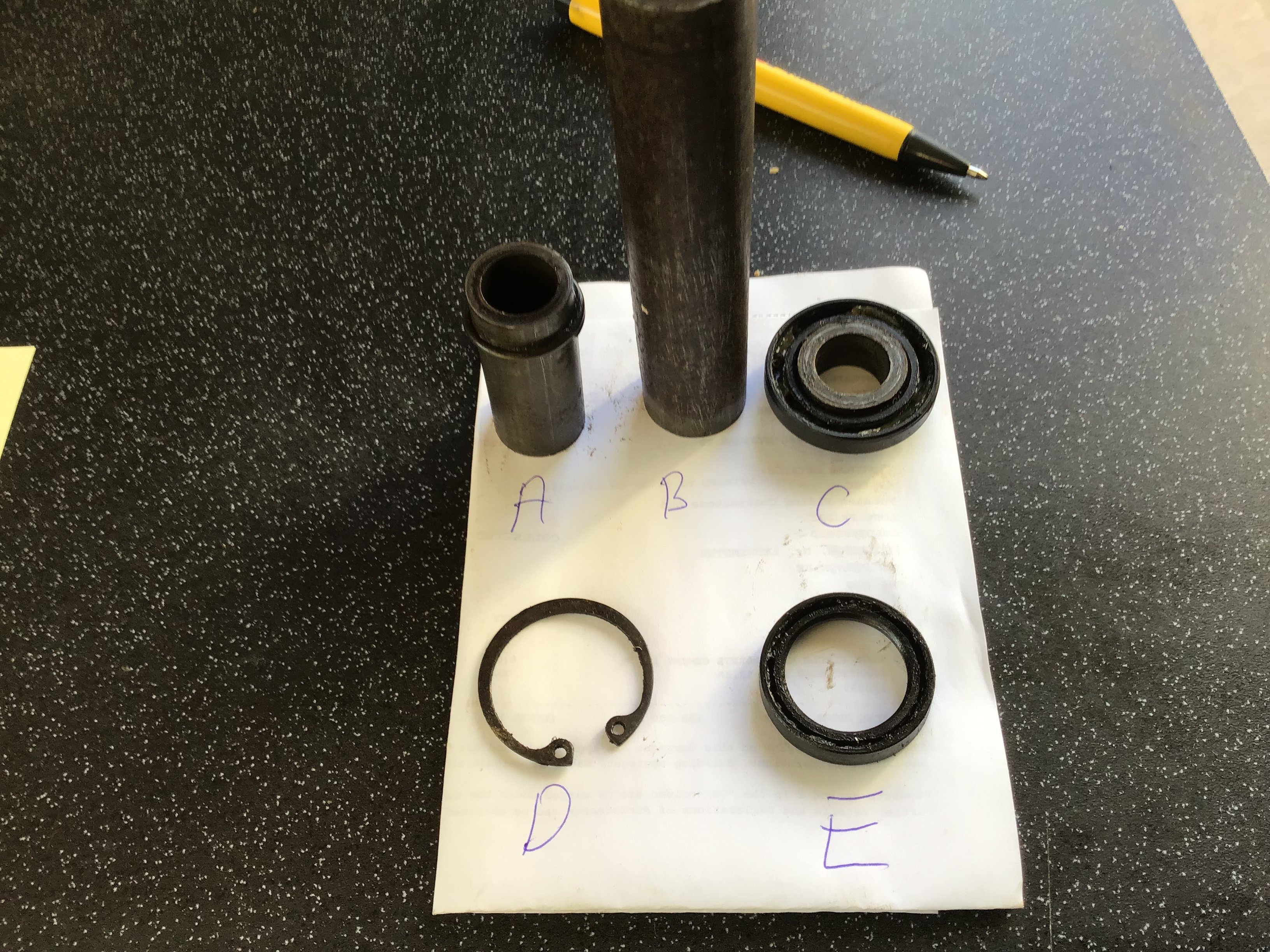

a bag came back with the parts in the picture don’t know if they’re back or front

or which order it’s a fantic 240 I’d like some help


Share this post

Link to post
Share on other sites


Hopefully you are not still trying to put this together, but here is the information you asked for.

A is the spacer between the two front wheel bearings

B is the spacer inside the back wheel

C looks like the front wheel bearing ( Size 6202 on my 200). I hope you are replacing it.

D is the circlip that holds the brake side bearing in place in the front hub

E is the front wheel seal (25 x 35 x 6 mm)



Share this post

Link to post
Share on other sites

Thanks for getting back to me ,

it is sorted now found the exploded drawing on here it’s helped a lot

It’s a steep learning curve when you don’t know

the wheels are great new bearings fitted with spacers inside!

more stupid questions to follow
