Rev 3 carb settings and issues.

Recommended Posts

He'llo everyone, first time posting in here as I'm new to trialling.

I've got myself a 2006 Rev 3 250, I really enjoy riding it but I've noticed a couple of things.

First off the carb would dribble all the time from the atmosphere tubes so I did the BILLY T mod with the plate tang, replaced the vent pipes with long ones going over the carb.

Whilst I had the carb stripped and cleaned in the bath, I checked the needle to find the rubber hard with a dip in the cone so fitted a genuine needle and body.

The carb also had the standard 30 pilot and 150 main, I've read the I should try the 27.5 pilot and 145 main so I've fitted a 27.5 but I'm waiting on the 145, I've refitted the 150.

Now I'm noticing the bike seems to want to stall easily when I'm slipping the clutch to start moving... This didn't happen until I modded the carb.

What should the basic settings be when rebuilding the carb, what should the air fuel screw be set to, it's set to 1 ¾ turns out.

Also there's a brass overflow pipe under the carb, should the be a pipe on that like the vent pipes?

Lastly, the throttle cable on top of the carb, the metal bend into the top cap, should that be tightened or left loose as I've read something about air getting in at the point and messing with the air fuel ratio.

Share this post


Link to post
Share on other sites


Noodle on throttle cable is loose on purpose so the cable can swivel. The brass tube on bottom of carb is float bowl overflow and it's important it ends below the float bowl. If you put a long tube on it higher than the bowl and the float bowl overfills it'll end up in the engine. The air screw at 1 3/4 is about right but you may have to adjust for conditions. The 27.5 pilot is kind of the default as the older bikes came jetted a little rich as opposed to all bikes now that seem to come jetted lean for emissions. The Billy T fix of nippering a hole in the vent tubes above the height of the float bowl works well and should preclude the necessity of routing the vent tubes up higher. In fact once the tubes have the holes above the float bowl the ends should be routed as standard down the back of the engine cases. Adjusting the tangs on the float lever is not always as straight forward as it seems. The travel adjust is important but the level adjust needs to be thought through. I assume you set it level when the tang just touches the float valve plunger. If you let the weight of the float assembly sit on the plunger it'll compress the spring in the plunger and give an incorrect level reading. One thing to consider is that with a slightly off pilot mixture most people will adjust their idle higher. So when they change the pilot they readjust their idle to a similar RPM but the slide is actually in a slightly different position. You nay need a slightly higher idle with the current jetting.

Keep working on it. Carb adjustments take time and many iterations to get right. Well worth it.



Share this post


Link to post
Share on other sites


The float arm was upside down when I stripped the carb, the perpendicular tang was pointing down.

I turned the arm and refitted, the arm sat perfectly parallel to the carb body whilst on the needle but not compressing the needle spring. I then adjusted the travel tang so that it was 1/16th above the left tower at max lift.

I did notice the bike performed better with a higher idle but I thought that would be wrong as the higher idle may push me out on tighter turns but that's just my very novice bike handling, this is only the fourth time I've ridden a motorbike.

Share this post


Link to post
Share on other sites


If the air screw hasn’t been touched and you’ve gone leaner on the pilot and are now experiencing less strength in the motor, try going in on the air screw 1/8th turn at a time (richer) and re test. You can also try coming out from where it is now. One will be the right direction to follow. Make sure engine is fully warmed first and idle is set right. The main won’t be having any affect at smaller throttle openings. That only comes into play after half throttle. You will be able to dial it in though easy enough.

Share this post


Link to post
Share on other sites

On 7/12/2020 at 4:51 PM, basssound said:

The float arm was upside down when I stripped the carb, the perpendicular tang was pointing down.



That's a little disturbing.

Share this post


Link to post
Share on other sites

On 7/14/2020 at 11:41 PM, pindie said:

The main won’t be having any affect at smaller throttle openings. That only comes into play after half throttle. You will be able to dial it in though easy enough.

Mmmm... As soon as you get off the idle the main jet is now in the equation.... Key word is IN the equation

Why?  Because the fuel has to flow up through the main jet orifice to get to the needle jet orifice as the slide moves up taking the needle with it...

As the needle and slide get higher the main jet starts to have a bigger influence / role to play

All jets (Pilot / Needle / Main) are in the equation once the slide and needle jet start to move up although at different contributions

Be it a Mikuni or Keihin carb the logic is the same








Edited by billyt

Share this post


Link to post
Share on other sites


Wait a minute. Did you mean the travel adjust tang was pointing to the bottom of the carb? That is where it’s supposed to go as it limits the float travel while the carb is bouncing around. If that’s the case your float arm is now in upside down.

We need pictures?


Edited by dan williams

Share this post


Link to post
Share on other sites


Dan... Wont be the first time someone has installed the brass tang upside down.  Seen that and worse on the VM 26mm Mikuni's on the Beta.

How about a float install without an axle pin, or some holes drilled in the floats to make them lighter and the worse was connecting the gas directly to one

of the brass atmospheric vent tubes and then could not figure why the gas was flooding out of the carb when he turned the gas on ?



Edited by billyt

Share this post


Link to post
Share on other sites

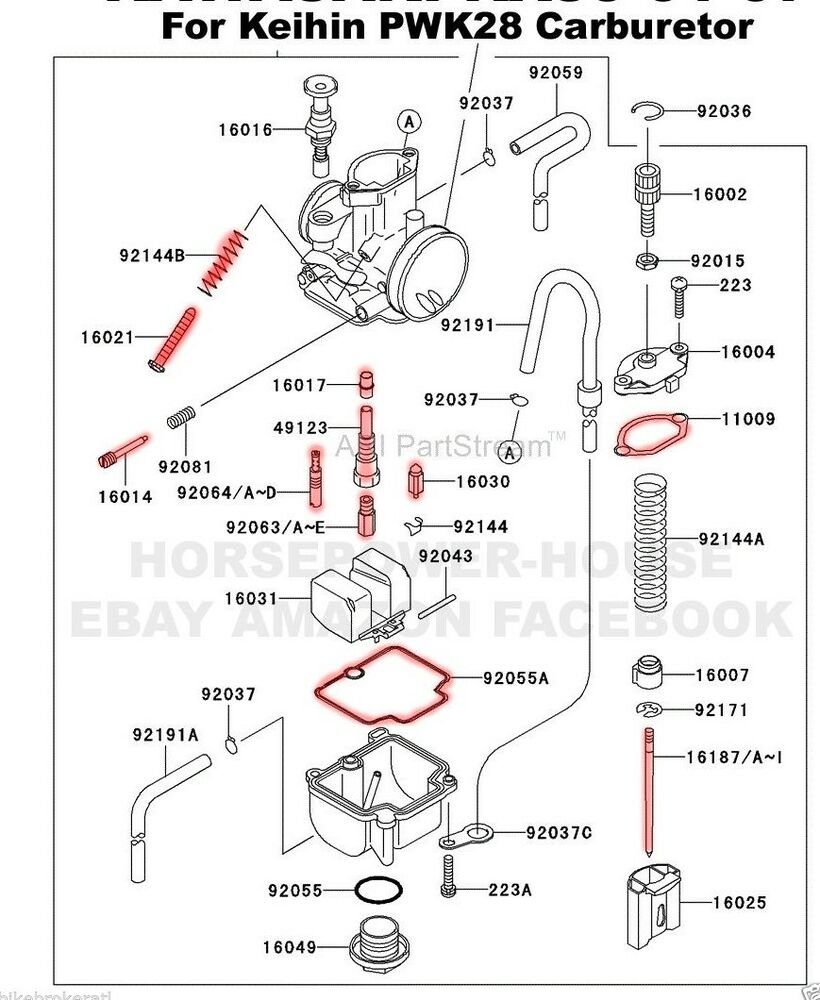

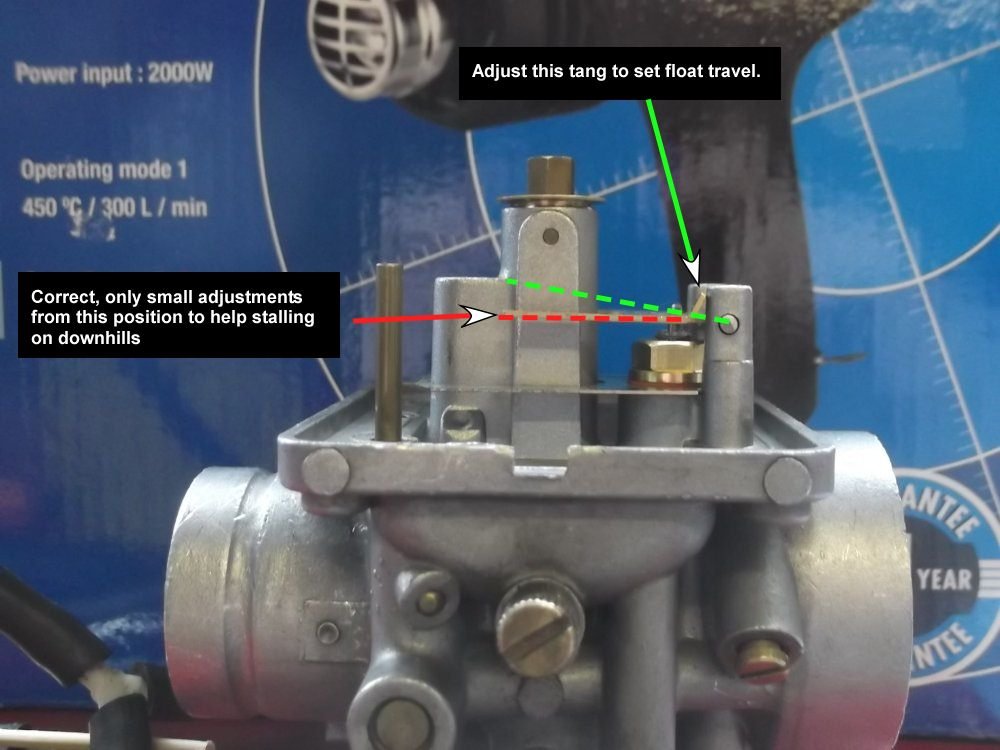

The 'adjust this tang to set the float travel' in the above picture was facing down and not up, it's up the above picture.
