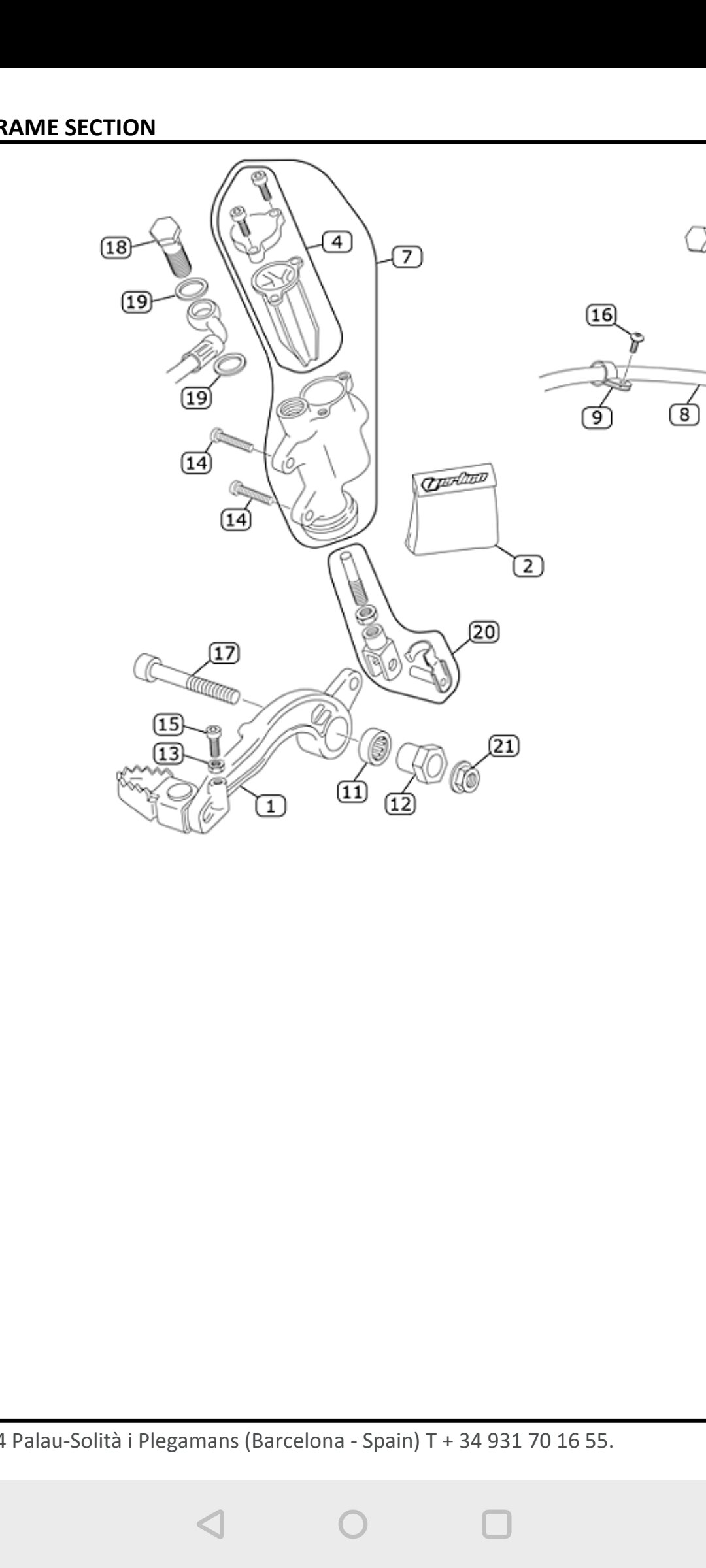

January 5, 20224 yr Hi, in the exploded view u can see part 12 and it seems to me that the piece with the nut is on the inside. On my bike it does not fit that way, only with the nut on the outside to get enough clearance for the brake lever. Anyone has an (2016) that can have a look ? Also there is a "powerbox" in the front under the air filter. According the drawings it is in a rubber grommet. I assume it is a bit confusing and must be the grommet of the ECU. So is the powerbox in a rubber grommet ?
January 5, 20224 yr My 2020 has the brake pivot setup as shown. The lever is right up against the frame. Works fine. My 2017 was the same from memory.
January 5, 20224 yr Hi Tiewrap, my 2020 is the same as yours and not as shown in the diagram. Bushing #12 is installed with its hexagon end against the frame, then the pedal is fitted and secured by a large washer and lock nut.
January 6, 20224 yr Author Interesting, wil have a look at some others. Curious where the difference is in.
