1974 TY250 piston arrow / window direction


Dirtclods
 Share

Recommended Posts

I have ran across a discrepancy in what I have and what I have read and seen.

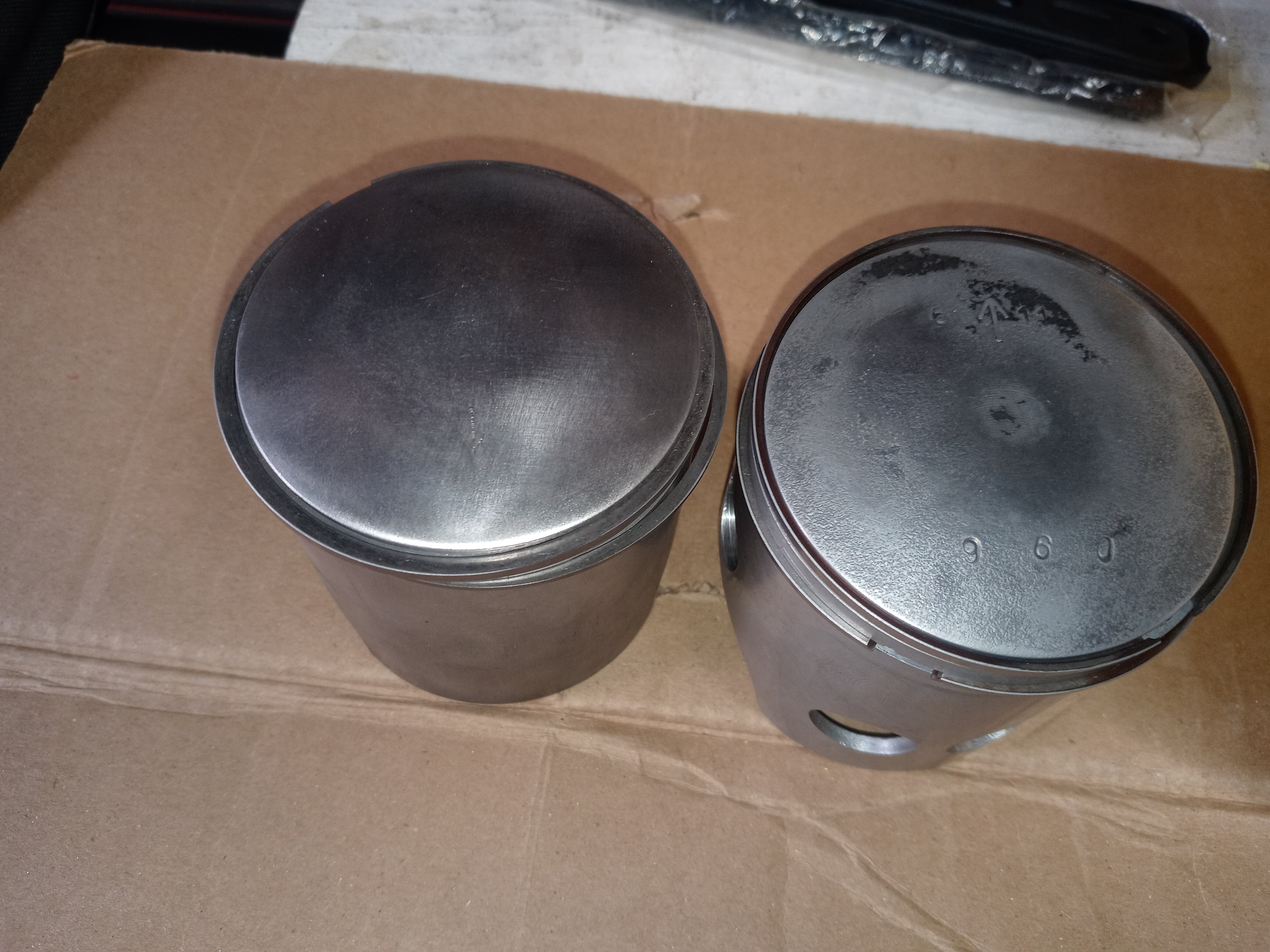

I have a stock and aftermarket stock size pistons. Both have the windows on one side and the arrow on the other.

The parts diagrams I have looked at all show the arrow and windows on  same side facing forward toward exhaust.

Am I missing something or is something not right here.

I am about to put the piston in with windows toward exhaust but the arrow will face back which goes against every piston I've ever installed.





Link to comment
Share on other sites






Diagrams copied how many times in 50 years. LOL It helps to understand mechanics of 2 strokes in the first place. We went decades with barely any real information, except the one between our own ears.
