dozerash Posted March 4, 2020 Report Share Posted March 4, 2020 This all wheel drive SWM was built in 1981! It was a Prototype, they competed with it once and the FIM banned all wheel drive bikes. If anyone else knows anymore about this Prototype or have more pictures, please post them! 2 Quote Link to comment Share on other sites More sharing options...
jonboy883 Posted March 4, 2020 Report Share Posted March 4, 2020 Please don't ask us where you'd get spares for it! ? Quote Link to comment Share on other sites More sharing options...
rotors7 Posted March 4, 2020 Report Share Posted March 4, 2020 I can remember an article on it at the time in the Tmx ! I actually kept it with a ton of other stuff and sold it all to a fellow spotter Quote Link to comment Share on other sites More sharing options...

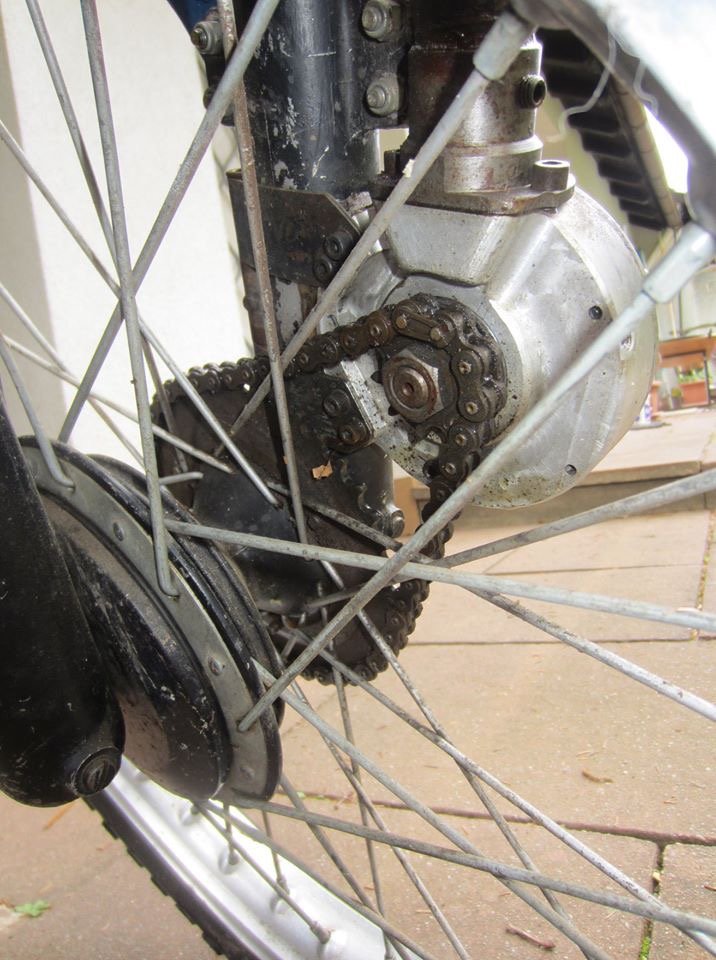

dozerash Posted March 4, 2020 Author Report Share Posted March 4, 2020 Here are a couple more pictures I found: 1 Quote Link to comment Share on other sites More sharing options...
neilios Posted March 4, 2020 Report Share Posted March 4, 2020 Not seen one of those before, very interesting bike. Quote Link to comment Share on other sites More sharing options...
pschrauber Posted March 4, 2020 Report Share Posted March 4, 2020 5 hours ago, dozerash said: Here are a couple more pictures I found: I can clearly see You captured my picture stack on Google Photos! Next time please ask in forehand. That is one of two bikes fitted with the front wheel drive. They are made in Germany and where used in our nationals in 1981/82 until the front wheel drive was forbidden! The drive has a slip clutch so if you loose traction at the rear wheel the front wheel drive will engage to keep wear low. Thus the big clutch like mechanism at the first chain and sprocket. The second was made for a guy in France. The momentum of the drive will give some momentum to the steering too when it engaged and transmitting force which you have to be adjusted and aware too. The drive was expensive around 3/4 of a complete bike. Helmut Tomaschel was the engineer behind the drive the other Helmut Körber was the driver. The long guy riding the bike is Krahnstöver testing the two wheel drive, Krahnstöver was an 11 times German trials champion and started our German Trialsport Magazin too. Quote Link to comment Share on other sites More sharing options...
dozerash Posted March 5, 2020 Author Report Share Posted March 5, 2020 3 hours ago, pschrauber said: I can clearly see You captured my picture stack on Google Photos! Next time please ask in forehand. That is one of two bikes fitted with the front wheel drive. They are made in Germany and where used in our nationals in 1981/82 until the front wheel drive was forbidden! The drive has a slip clutch so if you loose traction at the rear wheel the front wheel drive will engage to keep wear low. Thus the big clutch like mechanism at the first chain and sprocket. The second was made for a guy in France. The momentum of the drive will give some momentum to the steering too when it engaged and transmitting force which you have to be adjusted and aware too. The drive was expensive around 3/4 of a complete bike. Helmut Tomaschel was the engineer behind the drive the other Helmut Körber was the driver. The long guy riding the bike is Krahnstöver testing the two wheel drive, Krahnstöver was an 11 times German trials champion and started our German Trialsport Magazin too. Pschrauber, sorry for not asking permission on posting the AWD SWM photos. If I knew they were yours I would have asked. Thanks for all the info on the bike, I find it very interesting that they built something like that back then. Would like to know how well it worked. Quote Link to comment Share on other sites More sharing options...
pschrauber Posted March 5, 2020 Report Share Posted March 5, 2020 It worked very well, but as mentioned the front wheel drive did only engage when you got slip at the rear end. All in all it was an advantage especially on slippery ground in wet and muddy or grounds with deep sand. The 2 wheel drive was later (in the next season already) forbidden in trials competition. Quote Link to comment Share on other sites More sharing options...
section swept Posted March 5, 2020 Report Share Posted March 5, 2020 Yamaha tried a version on there enduro or m/x can’t remember exactly when but is was hydraulic drive much like the SWM device. Quote Link to comment Share on other sites More sharing options...
dozerash Posted March 6, 2020 Author Report Share Posted March 6, 2020 I remember the Yamaha hydraulic drive AWD, I think KTM had a version too, didn’t Ohlins build that system? The Rokon moto tractor has a driveshaft through the frame with a slip clutch to a jackshaft to a chain driving the front wheel. Christini AWD also has a driveshaft and slip clutch with gears and chains to telescoping shafts that drive the front wheel. Looks like the SWM had a flex shaft that transferred power to the front wheel. Quote Link to comment Share on other sites More sharing options...
DD250 Posted March 19, 2020 Report Share Posted March 19, 2020 On 3/5/2020 at 2:32 AM, dozerash said: Pschrauber, sorry for not asking permission on posting the AWD SWM photos. If I knew they were yours I would have asked. Thanks for all the info on the bike, I find it very interesting that they built something like that back then. Would like to know how well it worked. If you’re going to get delicate about your photos then don’t post them on the internet Quote Link to comment Share on other sites More sharing options...
b40rt Posted March 19, 2020 Report Share Posted March 19, 2020 1 hour ago, DD250 said: If you’re going to get delicate about your photos then don’t post them on the internet Silly comment. 1 Quote Link to comment Share on other sites More sharing options...
DD250 Posted March 21, 2020 Report Share Posted March 21, 2020 On 3/19/2020 at 9:59 PM, b40rt said: Silly comment. Not at all Quote Link to comment Share on other sites More sharing options...
b40rt Posted March 21, 2020 Report Share Posted March 21, 2020 11 minutes ago, DD250 said: Not at all pschrauber is an extremely knowledgeable and helpful guy who has gone out of his way to help fellow trials enthusiasts, why not just give a bit of credit where due ? Quote Link to comment Share on other sites More sharing options...
DD250 Posted March 21, 2020 Report Share Posted March 21, 2020 3 minutes ago, b40rt said: pschrauber is an extremely knowledgeable and helpful guy who has gone out of his way to help fellow trials enthusiasts, why not just give a bit of credit where due ? On that we totally agree Quote Link to comment Share on other sites More sharing options...
